LR20 F/BF10
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 15V D
LR20 F/BF10
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 15V D
Description
General part information
LR20 F/BF10

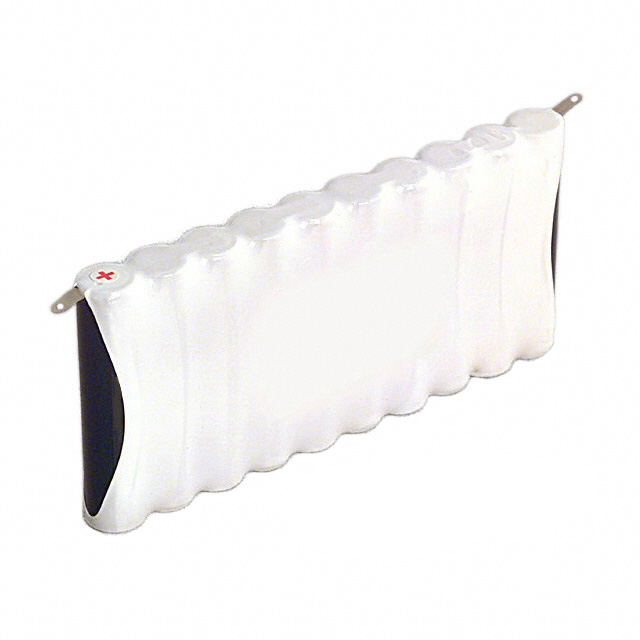

D 15 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | LR20 F/BF10 |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Capacity (Charge) | 15.25 Ah |
| Number of Cells | 10 |
| Rechargeability | No |
| Size / Dimension Height | 2.42 in |
| Size / Dimension Length | 13.46 in |
| Size / Dimension Width | 34.29 mm |
| Structure | Side to Side |
| Structure Cells | 10 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 15 V |
| Weight | 1310 g |
