CONNECTOR, Z-PACK SERIES, 125 CONTACTS, 2 MM, RECEPTACLE, PRESS FIT, 5 ROWS
5106774-1
ActiveTE Connectivity AMP Connectors
CONNECTOR, Z-PACK SERIES, 125 CONTACTS, 2 MM, RECEPTACLE, PRESS FIT, 5 ROWS
Description
General part information
Z-PACK 2mm HM Series

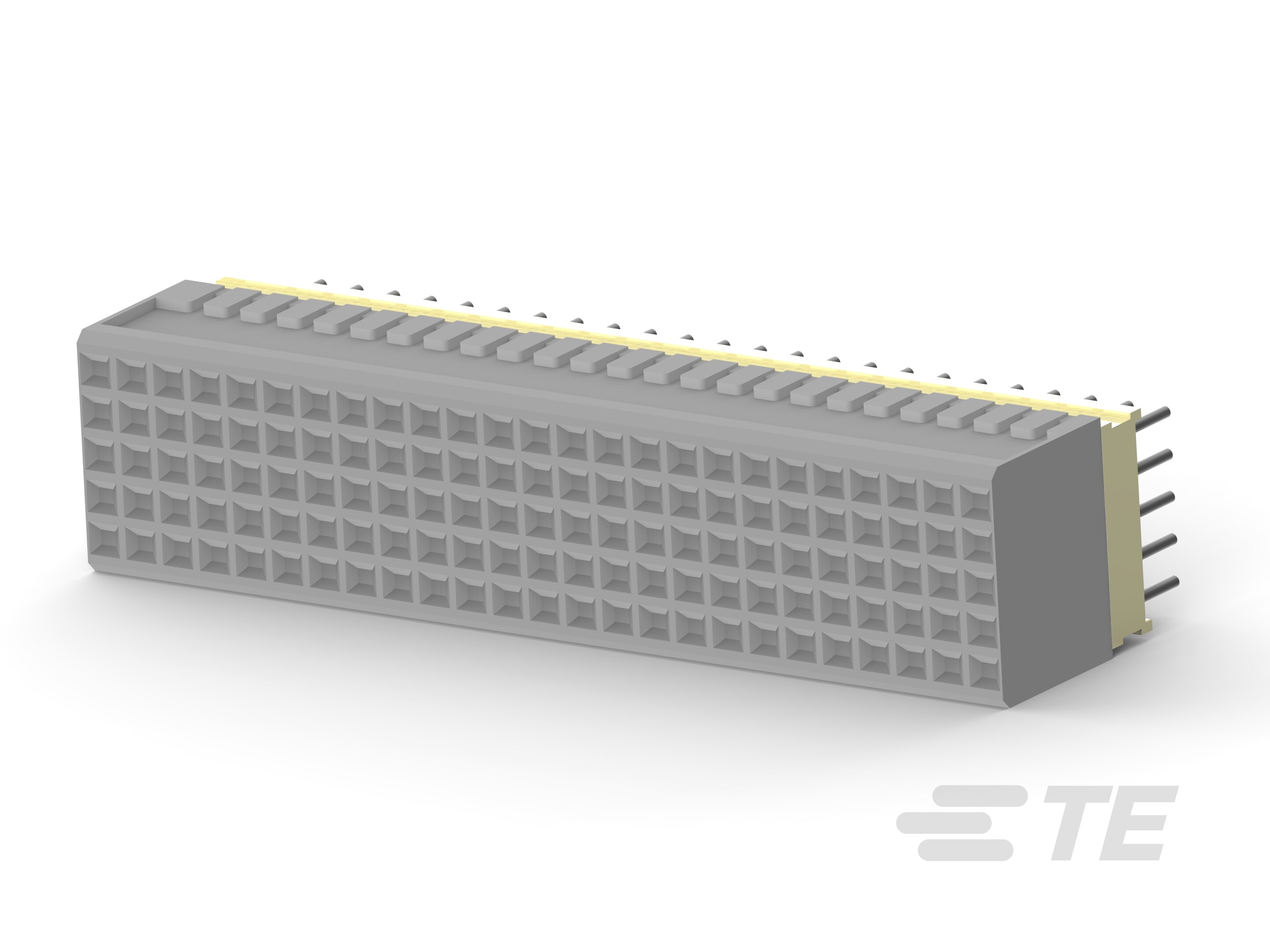

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 25 Column, 5 Row, Mezzanine, 125 Position, 2 mm [.078 in] Centerline, Vertical, Z-PACK 2mm HM
Technical Specifications
Parameters and characteristics for this part
| Specification | 5106774-1 |
|---|---|
| Connector Style | B 25 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Current Rating | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Termination | Press-Fit |
| Voltage Rating | 500 V |
