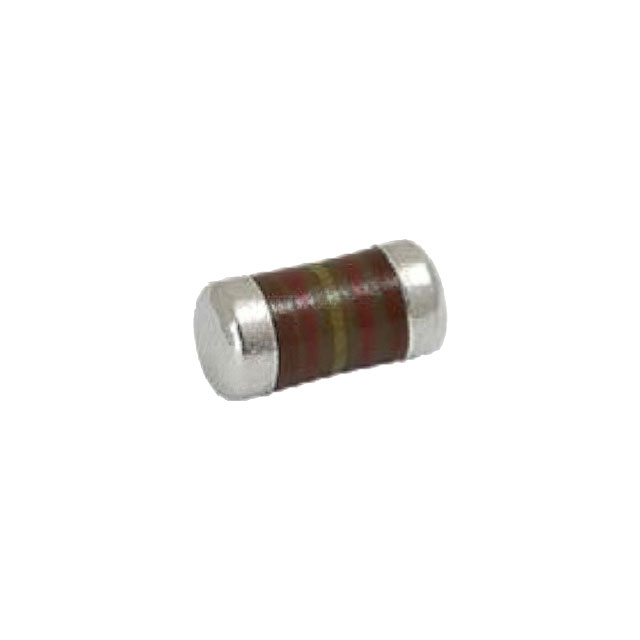

Specification	MMU01020C4300FB300

Composition	Thin Film
Features	Anti-Sulfur, Pulse Withstanding, Automotive AEC-Q200
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0102, MELF
Package Name	0102
Power (Watts)	300 mW
Ratings	AEC-Q200
Resistance	430 Ohm
Size / Dimension Diameter	0.055 in
Size / Dimension Length	0.142 in
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

MMx Professional Series

...

Part	Package / Case	Resistance	Features	Size / Dimension Diameter	Size / Dimension Length	Power (Watts)	Power (Watts) Options	Package Name	Number of Terminations	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Composition	Ratings
Vishay Dale MMA02040C2212FB300	0204 MELF	22.1 kOhm	Anti-Sulfur Automotive AEC-Q200	0.055 in	0.142 in	0.4 W	2/5W	0204	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
Vishay Dale MMA02040C1629FB300	0204 MELF	16.2 Ohm	Anti-Sulfur Automotive AEC-Q200	0.055 in	0.142 in	0.4 W	2/5W	0204	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
Vishay Dale MMA02040D3302DB300
Vishay Dale MMA02040C1330FB300	0204 MELF	133 Ohm	Anti-Sulfur Automotive AEC-Q200	0.055 in	0.142 in	0.4 W	2/5W	0204	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
Vishay Dale MMA02040D2373FB300
Vishay Dale MMB02070C1809FB700
Vishay Dale MMU01020C1780FB000	0102 MELF	178 Ohm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.043 in	0.087 in	0.2 W	1/5W	0102	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
Vishay Dale MMU01020C6203FB000	0102 MELF	620 kOhm	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.043 in	0.087 in	0.2 W	1/5W	0102	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
Vishay Dale MMB02070C5600FB200	0207 MELF	560 Ohm	Anti-Sulfur Automotive AEC-Q200	0.087 in	0.228 in	1 W		0207	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film	AEC-Q200
Vishay Dale MMA02040C1600FB300	0204 MELF	160 Ohm	Anti-Sulfur Automotive AEC-Q200	0.055 in	0.142 in	0.4 W	2/5W	0204	2	50 ppm/°C	155 °C	-55 °C	1 %	Thin Film
