AIRD-06-560K
ActiveAbracon LLC
FIXED IND 56UH 5.5A 39 MOHM TH
AIRD-06-560K
ActiveAbracon LLC
FIXED IND 56UH 5.5A 39 MOHM TH
Description
General part information
AIRD-06-560K

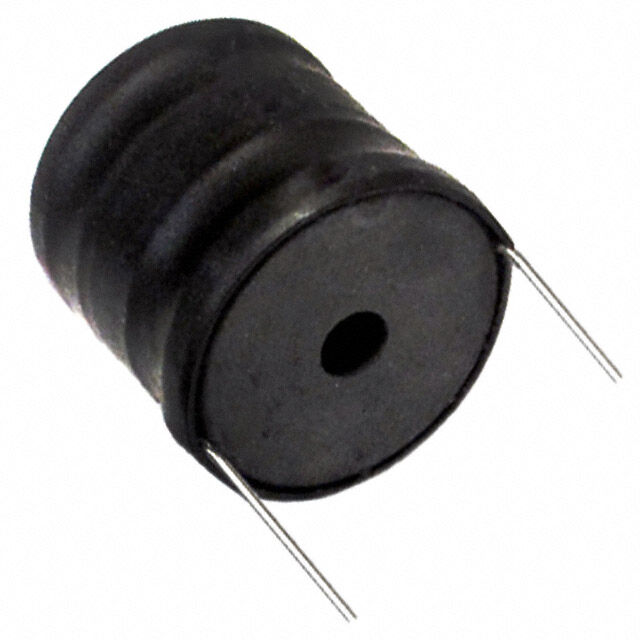

56 µH Unshielded Drum Core, Wirewound Inductor 5.5 A 39mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | AIRD-06-560K |
|---|---|
| Current - Saturation (Isat) | 13.6 A |
| Current Rating | 5.5 A |
| DC Resistance (DCR) (Max) | 39 mOhm |
| Height - Seated (Max) | 0.827 in |
| Inductance | 56 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 15 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.827 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
