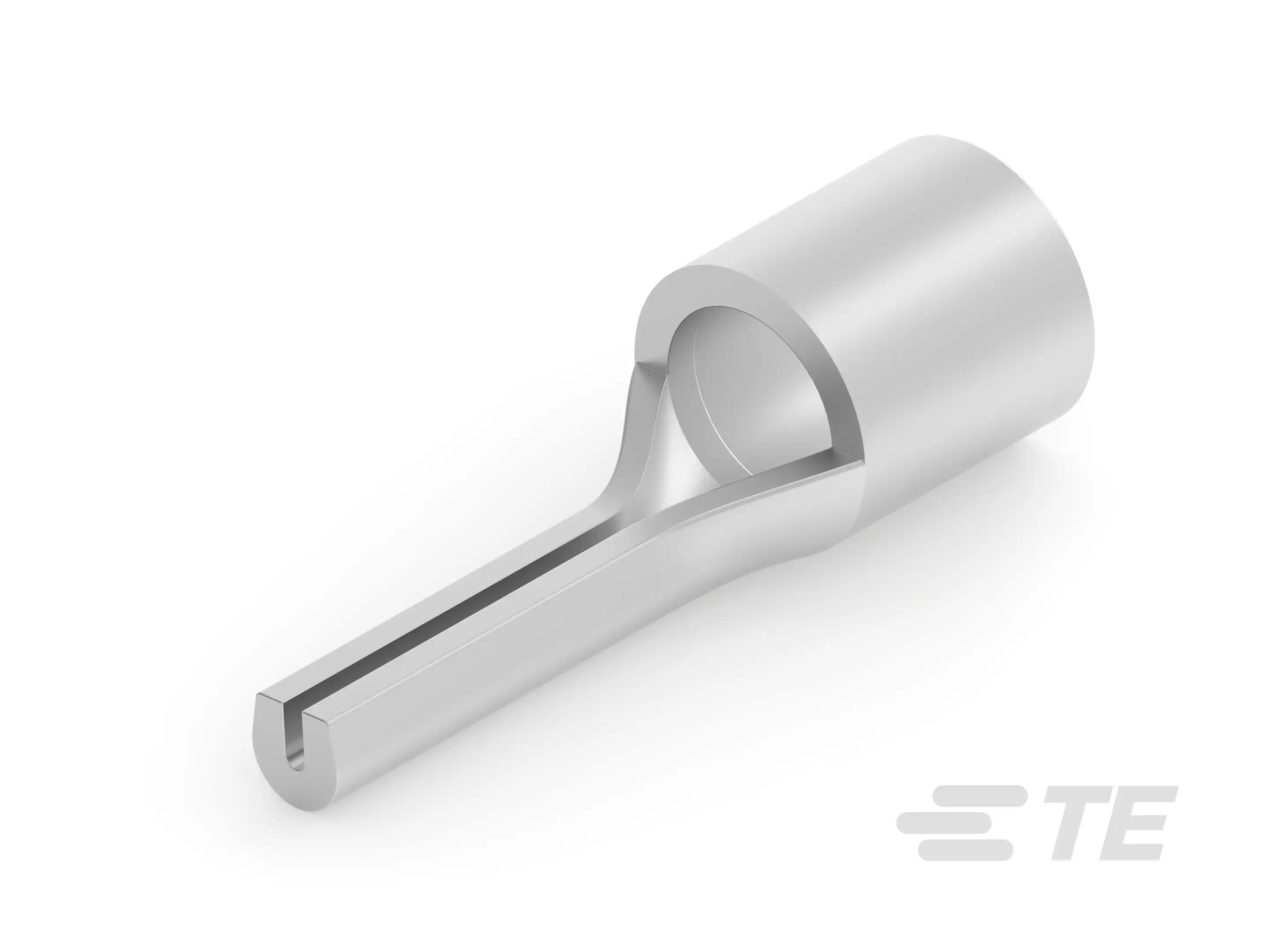

SOLIS 8 WIRE PIN-180599

180599

Active
TE Connectivity AMP Connectors

PIN TERMINAL, SOLISTRAND SERIES, CRIMP, 8 AWG, 8 MM², 2.6 MM

Find alt
SOLIS 8 WIRE PIN-180599

180599

Active
TE Connectivity AMP Connectors

PIN TERMINAL, SOLISTRAND SERIES, CRIMP, 8 AWG, 8 MM², 2.6 MM

Find alt

Description

General part information

180599

The SOLISTRAND series Terminal and Splice offer superior performance characteristics while terminating solid and stranded wire or irregular shaped conductors. Matching the terminal to the tool makes quality control easy and performance consistent. Corrosion and vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial specifications. The SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks and flanged tongue terminals in various sizes. It feature dimples or serrations inside the wire barrel provide optimum tensile strength and maximum electrical contact area after crimping.

Technical Specifications

Parameters and characteristics for this part

Specification180599
Contact FinishTin
Contact MaterialCopper
Diameter - Barrel ID0.185 in
Diameter - Barrel OD0.28 in
FeaturesBrazed Seam
InsulationNon-Insulated
Length - Overall0.87 in
Length - Pin0.409 in
Length - Termination0.461 in
Pin Diameter0.102 in
Pin Diameter ShapeCircular
TerminationCrimp
Wire Gauge8 AWG
