KXTJ2-1009-FR
ObsoleteKionix Inc.

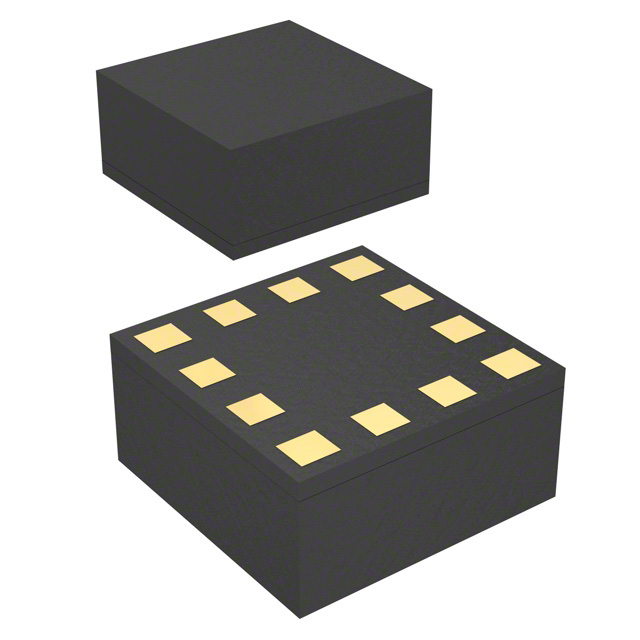

ACCELEROMETER 2-8G I2C 12LGA
KXTJ2-1009-FR
ObsoleteKionix Inc.
ACCELEROMETER 2-8G I2C 12LGA
Description
General part information
KXTJ2-1009-FR
Accelerometer X, Y, Z Axis ±2g, 4g, 8g 0.39Hz ~ 800Hz 12-LGA (2x2)
Technical Specifications
Parameters and characteristics for this part
| Specification | KXTJ2-1009-FR |
|---|---|
| Acceleration Peak | 8 g |
| Acceleration Range (Maximum) | 2 g |
| Acceleration Range (Minimum) | -2 g |
| Acceleration Typical | 4 g |
| Axis | Y, Z, X |
| Bandwidth (Max) | 800 Hz |
| Bandwidth (Min) | 0.39 Hz |
| Features | Selectable Scale, Adjustable Bandwidth |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | I2C |
| Package / Case | 12-VFLGA |
| Package Length | 2 mm |
| Package Name | 12-LGA |
| Package Width | 2 mm |
| Sensitivity (LSB/g) | 1024 LSB/g |
| Sensitivity Tolerance (g) | 8 g |
| Type | Digital |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
