Specification	SUP60061EL-GE3

Current - Continuous Drain (Id) (Tc)	150 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On)	4.5 V
Drive Voltage (Min Rds On)	10 V
FET Type	P-Channel
Gate Charge (Max)	218 nC
Input Capacitance (Ciss) (Max)	9600 pF
Mounting Type	Through Hole
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C

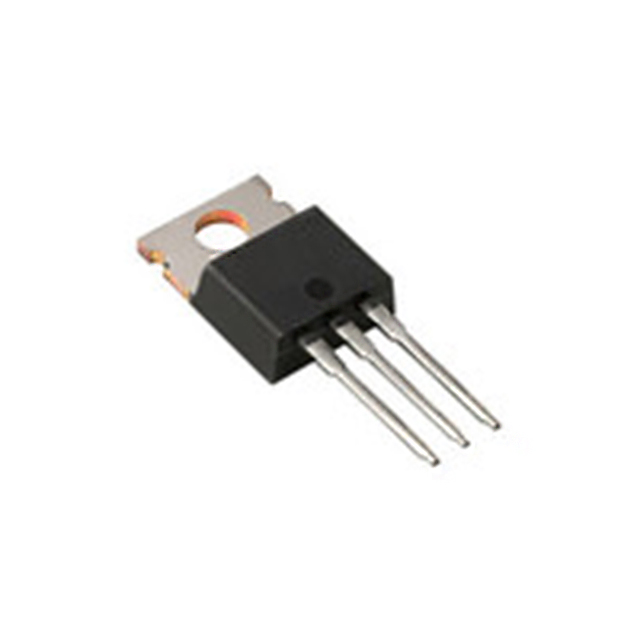

Package / Case	TO-220-3
Package Name	TO-220AB
Power Dissipation (Max)	375 W
Rds On (Max)	5.8 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	2.5 V
