BE-102789
ActiveMy Cable Mart
2 M SC/SC SINGLE MD 9/125 CBL
BE-102789
ActiveMy Cable Mart
2 M SC/SC SINGLE MD 9/125 CBL
Description
General part information
BE-102789

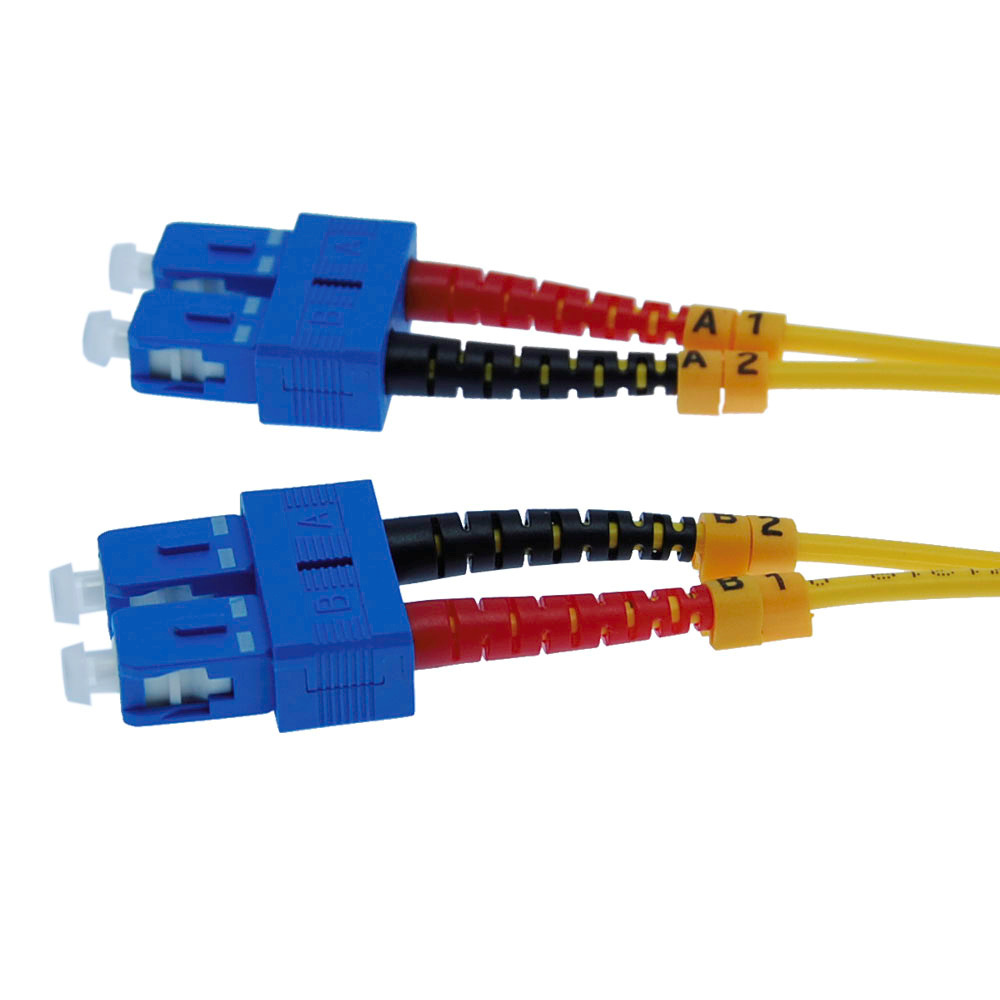

Cable Fiber Optic SC To SC 9/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BE-102789 |
|---|---|
| 1st Connector | SC |
| 2nd Connector | SC |
| Cable Type | Fiber Patch |
| Color - Cable | Yellow |
| Color - Connectors | Blue, White |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Flame Retardant Non-Corrosive (FRNC) |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNR |
| Return Loss | 55 dB |
| Type | Singlemode, Duplex |
