A32.259JZB.002F8
ObsoleteApacer Memory America
SATA 2242 PSLC BICS5 80GB WT
A32.259JZB.002F8
ObsoleteApacer Memory America
SATA 2242 PSLC BICS5 80GB WT
Description
General part information
A32.259JZB.002F8

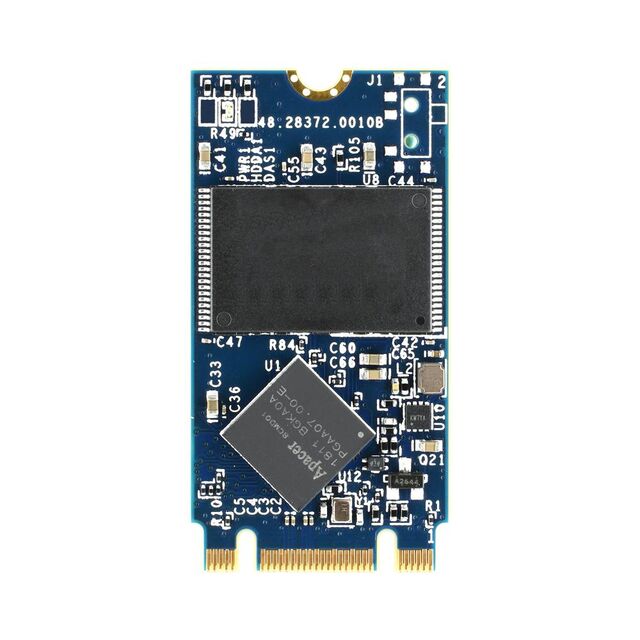

Solid State Drive (SSD) FLASH - NAND (TLC) 80GB SATA III M.2 Module 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | A32.259JZB.002F8 |
|---|---|
| Current - Max | 400 mA |
| Form Factor | M.2 Module |
| Memory Size | 80 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 3.88 mm |
| Size / Dimension Length | 42 mm |
| Size / Dimension Width | 22 mm |
| Speed - Read | 550 MB/s |
| Speed - Write | 485 MB/s |
| Type | SATA III |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
