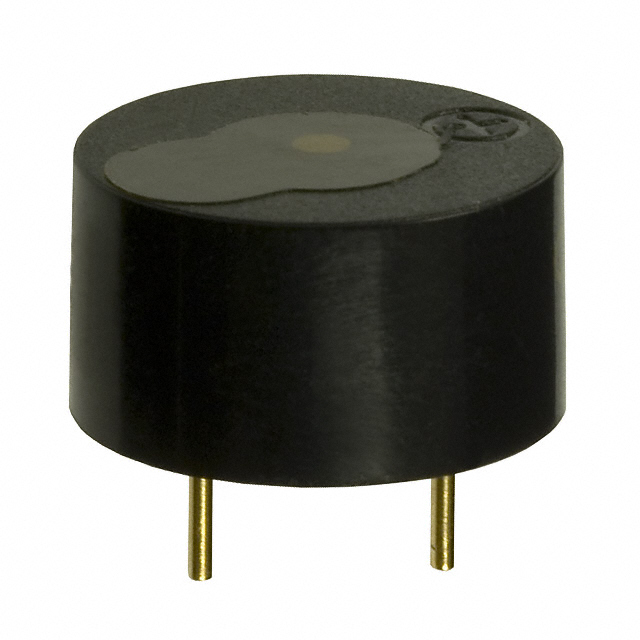

CEP-2242
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 12V 13.70MM TH
CEP-2242
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 12V 13.70MM TH
Description
General part information
CEP-2242
Buzzers Indicator, Internally Driven Piezo 12 V 7mA 4.1kHz 70dB @ 12V, 30cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CEP-2242 |
|---|---|
| Current - Supply | 7 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 4.1 kHz |
| Height - Seated (Max) | 0.319 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension Diameter | 0.539 in |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 16 V |
| Voltage Range (Min) | 3 V |
