FMHR0059-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-TYPE NJACK 36
FMHR0059-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-TYPE NJACK 36
Description
General part information
FMHR0059-36

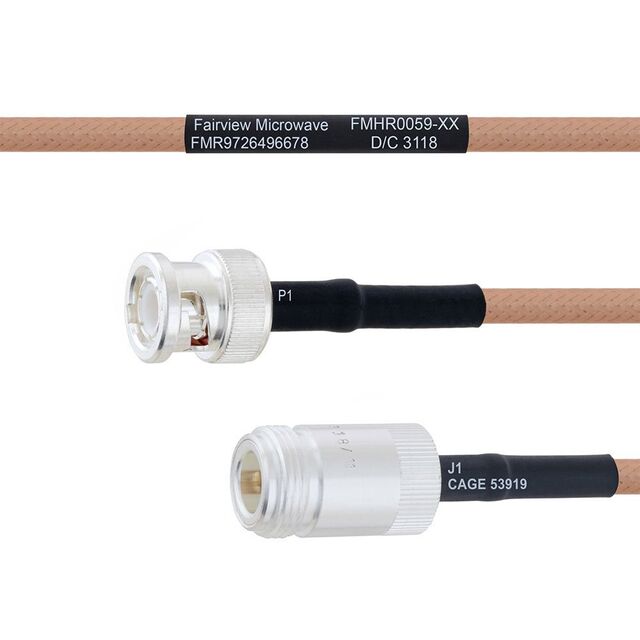

Cable Assembly Coaxial BNC to N-Type RG-400 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0059-36 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
