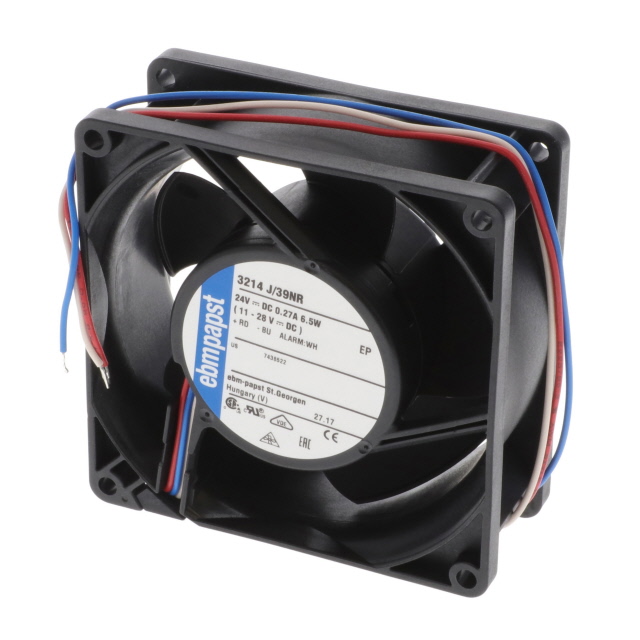

3214J/39NR - 3214J39NR

3214J/39NR

Active
ebm-papst Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
3214J/39NR - 3214J39NR

3214J/39NR

Active
ebm-papst Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification3214J/39NR
Air Flow76.5 CFM
Air Flow2.14 mł/min
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAlarm Sensor
Lifetime @ Temp.70000 Hrs
Material - BladePolyamide (PA), Nylon, Fiberglass Reinforced
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise51 dB(A)
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 °C
Operating Temperature [Min]-20 C
Power (Watts)6.5 W
RPM6000 RPM
Termination3 Wire Leads
Voltage - Rated24 VDC
Voltage Range [Max]28 VDC
Voltage Range [Min]11 VDC
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 66.26
10$ 59.95
25$ 56.01
50$ 55.22
100$ 50.88
NewarkEach 25$ 66.39
50$ 60.92
100$ 57.41
250$ 55.46

Description

General part information

3214J/39NR

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 76.5 CFM (2.14m³/min) 3 Wire Leads
