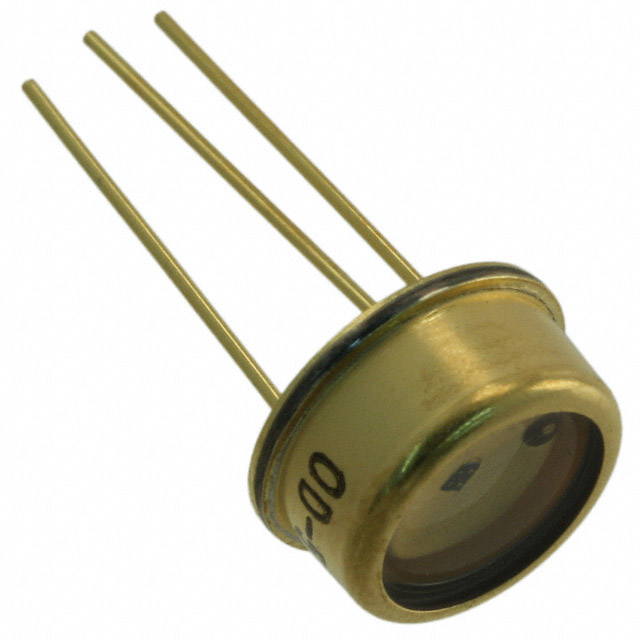

OD-469L

Active

Opto Diode Corp

LED 470NM HI VIS 470NM BLUE TO-5

Search across all available documentation for this part.

Active

Opto Diode Corp

LED 470NM HI VIS 470NM BLUE TO-5

Technical Specifications

Parameters and characteristics for this part

LED 470NM HI VIS 470NM BLUE TO-5

Part	Orientation	Wavelength [Min]	Wavelength	Wavelength [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - DC Forward (If) (Max)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case
Opto Diode Corp OD-469L	Top View	465 nm	470 nm	475 nm	100 °C	-55 °C	Visible	350 mA	7 °	3.2 V	Through Hole	TO-205AD, TO-39-3 Metal Can

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Visible Emitter 470nm (465nm ~ 475nm) 3.2V 350mA 7° TO-205AD, TO-39-3 Metal Can
