ERM8-013-08.0-L-DV-TR - ERM8-013-08.0-L-DV-TR

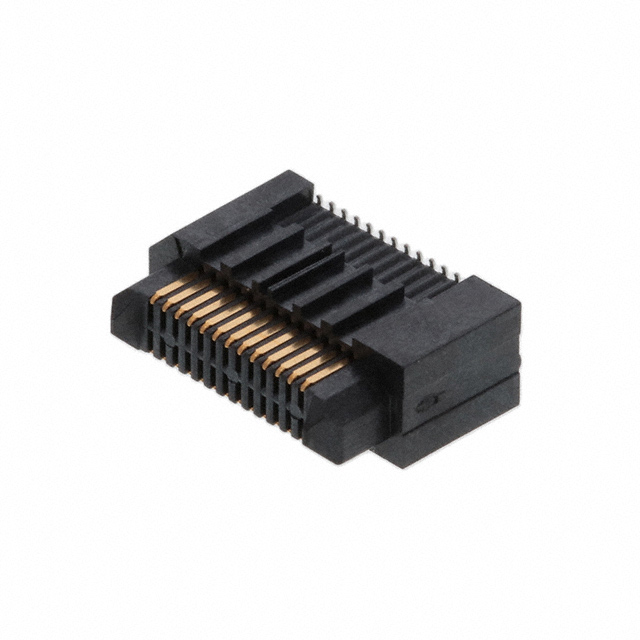

ERM8-013-08.0-L-DV-TR

Active
Samtec Inc.

CONN HDR 26POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetERM8 Datasheet+1
ERM8-013-08.0-L-DV-TR - ERM8-013-08.0-L-DV-TR

ERM8-013-08.0-L-DV-TR

Active
Samtec Inc.

CONN HDR 26POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheetERM8 Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationERM8-013-08.0-L-DV-TR
Connector TypeHeader, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide
Height Above Board8.91 mm
Height Above Board0.351 in
Mated Stacking Heights12 mm, 15 mm, 10 mm
Mounting TypeSurface Mount
Number of Positions26
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

ERM8-070 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal

...
PartContact FinishMounting TypeMated Stacking HeightsNumber of RowsFeaturesNumber of PositionsConnector TypeContact Finish ThicknessContact Finish ThicknessHeight Above BoardHeight Above BoardPitch [x]Pitch [x]
Samtec Inc.
ERM8-070-05.0-S-DV-L-TR
Gold
Surface Mount
10 mm
12 mm
15 mm
2
Board Guide
Latches
140
Header
Center Strip Contacts
0.76 Ám
30 Áin
8.91 mm
0.351 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-070-05.0-S-DV-L-K-TR
Gold
Surface Mount
10 mm
12 mm
15 mm
2
Board Guide
Latches
Pick and Place
140
Header
Center Strip Contacts
0.76 Ám
30 Áin
8.91 mm
0.351 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-040-02.0-L-DV-K-TR
Gold
Surface Mount
7 mm
9 mm
12 mm
2
Board Guide
Pick and Place
80
Header
Center Strip Contacts
0.25 Ám
10 Áin
5.97 mm
0.235 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-013-08.0-L-DV-TR
Gold
Surface Mount
10 mm
12 mm
15 mm
2
Board Guide
26
Header
Center Strip Contacts
0.25 Ám
10 Áin
8.91 mm
0.351 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-070-01-L-D-RA-L-TR
Gold
Surface Mount
Right Angle
2
Board Guide
Latches
Mounting Flange
140
Header
Center Strip Contacts
0.25 Ám
10 Áin
6.25 mm
0.246 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-070-01-S-D-RA-L-TR
Gold
Surface Mount
Right Angle
2
Board Guide
Latches
Mounting Flange
140
Header
Center Strip Contacts
0.76 Ám
30 Áin
6.25 mm
0.246 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-013-08.0-L-DV-K-TR
Gold
Surface Mount
10 mm
12 mm
15 mm
2
Board Guide
Pick and Place
26
Header
Center Strip Contacts
0.25 Ám
10 Áin
8.91 mm
0.351 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-013-01-S-D-RA-TR
Gold
Surface Mount
Right Angle
2
Board Guide
Mounting Flange
26
Header
Center Strip Contacts
0.76 Ám
30 Áin
6.25 mm
0.246 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-049-01-S-D-RA-DS-L-K-TR
Gold
Surface Mount
Right Angle
2
Board Guide
Latches
Mounting Flange
Pick and Place
98
Differential Pair Array
Male
0.76 Ám
30 Áin
6.25 mm
0.246 in
0.8 mm
0.031 in
Samtec Inc.
ERM8-070-09.0-L-DV-K-TR
Gold
Surface Mount
14 mm
16 mm
19 mm
2
Board Guide
Pick and Place
140
Header
Center Strip Contacts
0.25 Ám
10 Áin
12.91 mm
0.508 in
0.8 mm
0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.45
25$ 3.94
50$ 3.66
100$ 3.56
Digi-Reel® 1$ 4.45
25$ 3.94
50$ 3.66
100$ 3.56
Tape & Reel (TR) 200$ 3.52
600$ 3.07
1000$ 2.91

Description

General part information

ERM8-070 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal
