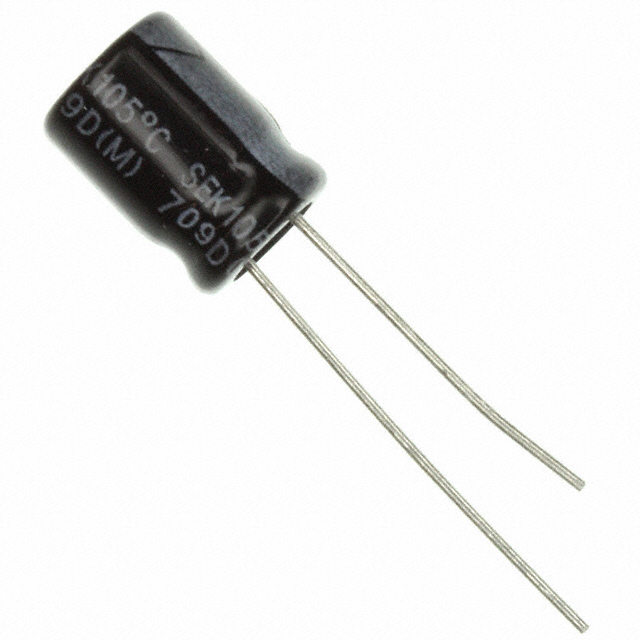

Specification	SEK471M010ST

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	620 mOhm
Height - Seated (Max)	0.453 in
Lead Spacing	0.138 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	366 mA, 305 mA
Size / Dimension Diameter	0.315 in
Tolerance	20 %
Voltage - Rated	10 V
