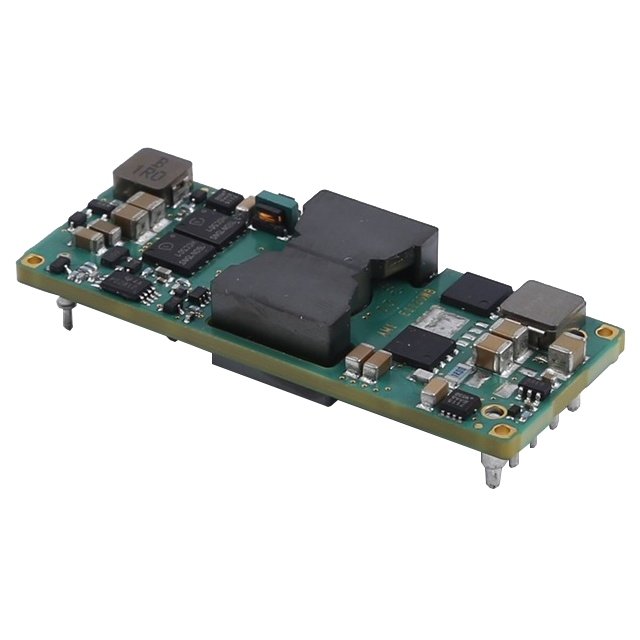

ERS3120N010K25WE

Active

NetPower

DC DC CONVERTER 12V 120W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 120W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 120W

Part	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Supplier Device Package	Type	Voltage - Isolation	Mounting Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Applications	Package / Case	Voltage - Input (Min) [Min]	Control Features
NetPower ERS3120N010K25WE	120 W	1	85 °C	-40 °C	10 A	Eighth Brick	Isolated Module	2250 VDC	Through Hole	12 V	75 V	0.41 "	2.3 in	22.8 mm	0.9 "	58.4 mm	10.5 mm	91 %	ITE (Commercial)	Eighth Brick	18 V	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 58.50

General part information

Isolated Module DC DC Converter 1 Output 12V 10A 18V - 75V Input
