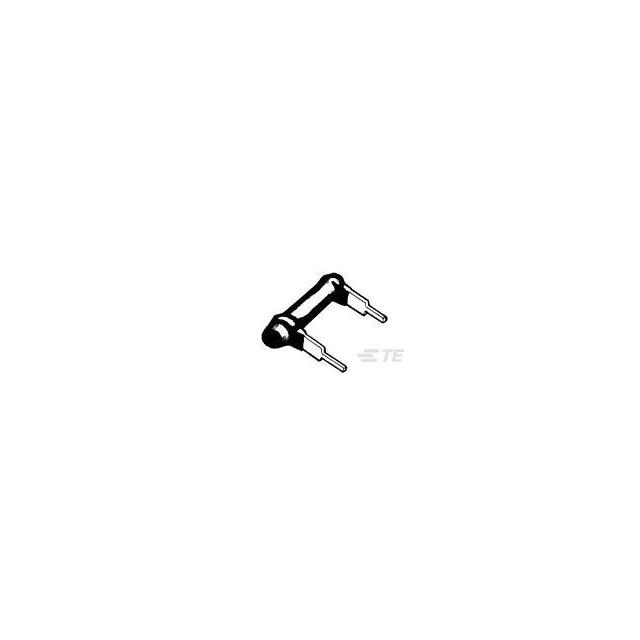

1-1623714-5

Active

TE Connectivity Passive Product

RES 2.2K OHM 5% 4W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 2.2K OHM 5% 4W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1-1623714-5

Composition	Wirewound
Features	Safety, Flame Retardant Coating
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	4 W
Resistance	2200 Ohms
Size / Dimension [diameter]	0.197 "
Size / Dimension [diameter]	5 mm
Size / Dimension [z]	0.953 "
Size / Dimension [z]	24.2 mm
Temperature Coefficient	20 ppm/°C
Tolerance	5 %

Part	Features	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Temperature Coefficient	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Number of Terminations	Resistance	Power (Watts)	Tolerance
TE Connectivity Passive Product 1-1623714-5	Flame Retardant Coating Safety	Wirewound	-55 °C	200 °C	Radial	20 ppm/°C	0.953 "	0.197 "	5 mm	24.2 mm	2	2200 Ohms	4 W	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 kOhms ±5% 4W Through Hole Resistor Radial Flame Retardant Coating, Safety Wirewound
