2906223
ActivePhoenix Contact

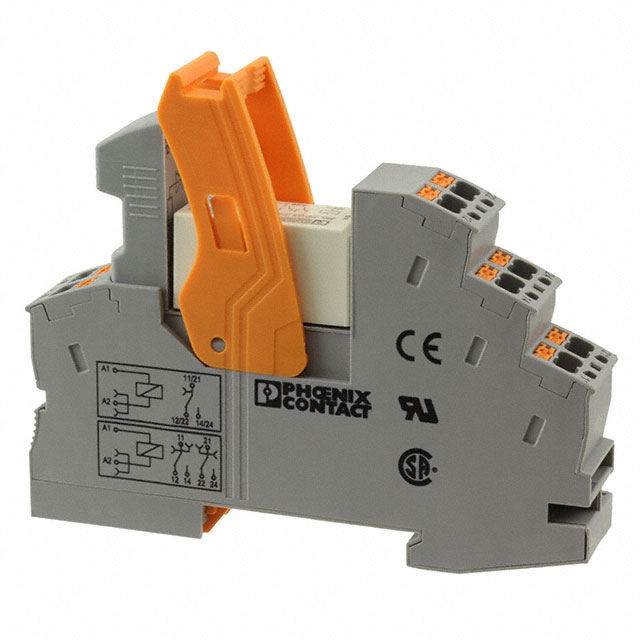

RELAY GEN PURPOSE DPDT 8A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2906223
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 8A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2906223 | 29062 Series |
|---|---|---|
| Approval Agency | CSA | cULus, EAC, UR, CSA |
| Coil Current | 33 mA | 17 - 33 mA |
| Coil Resistance | 364 Ohms | 1.41 - 364 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 24 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A | 8 - 11 A |
| Features | Socket Included, Diode, Lighted Indicator | Socket Included, Diode, Lighted Indicator |
| Mounting Type | DIN Rail | Through Hole, DIN Rail |
| Operate Time | 8 ms | 7 - 8 ms |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 3 - 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Spring Terminal | PC Pin, Spring Terminal |
29062 Series
RELAY GEN PURPOSE DPDT 8A 24V
| Part | Approval Agency | Contact Rating (Current) | Mounting Type | Coil Current | Release Time | Coil Type | Termination Style | Relay Type | Coil Resistance | Contact Material | Switching Voltage | Contact Form | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2906213 | cULus, EAC, UR | 8 A | Through Hole | 17 mA | 3 ms | Non Latching | PC Pin | General Purpose | 1.41 kOhms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | DPDT (2 Form C) | 7 ms | 85 °C | -40 °C | 24 VDC | |
Phoenix Contact 2906223 | CSA | 8 A | DIN Rail | 33 mA | 10 ms | Non Latching | Spring Terminal | General Purpose | 364 Ohms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | DPDT (2 Form C) | 8 ms | 70 °C | -40 °C | 12 VDC | Diode, Lighted Indicator, Socket Included |
Phoenix Contact 2906224 | 11 A | DIN Rail | 33 mA | 10 ms | Non Latching | Spring Terminal | General Purpose | 364 Ohms | Silver Nickel (AgNi) | 250 VAC, 250 VDC | SPDT (1 Form C) | 8 ms | 70 °C | -40 °C | 12 VDC | Diode, Lighted Indicator, Socket Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.59 | |
| 10 | $ 10.84 | |||
| 50 | $ 9.97 | |||
| 100 | $ 9.21 | |||
| 250 | $ 8.78 | |||
| 500 | $ 8.73 | |||
Description
General part information
29062 Series
General Purpose Relay DPDT (2 Form C) 12VDC Coil DIN Rail
