CDRH104RNP-101NC
ActiveSumida America Components Inc.
FIXED IND 100UH 1.25A 304MOHM SM
CDRH104RNP-101NC
ActiveSumida America Components Inc.
FIXED IND 100UH 1.25A 304MOHM SM
Description
General part information
CDRH104RNP-101NC

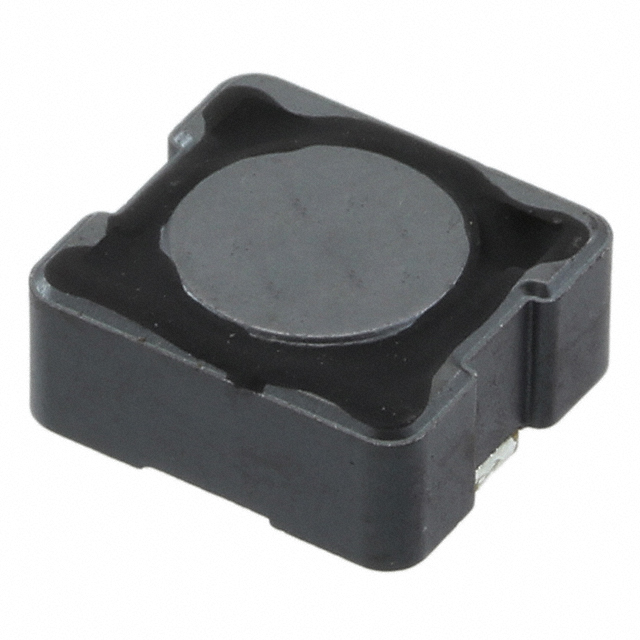

100 µH Shielded Inductor 1.25 A 304mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH104RNP-101NC |
|---|---|
| Current - Saturation (Isat) | 1.35 A |
| Current Rating | 1.25 A |
| DC Resistance (DCR) (Max) | 304 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.402 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 30 % |
