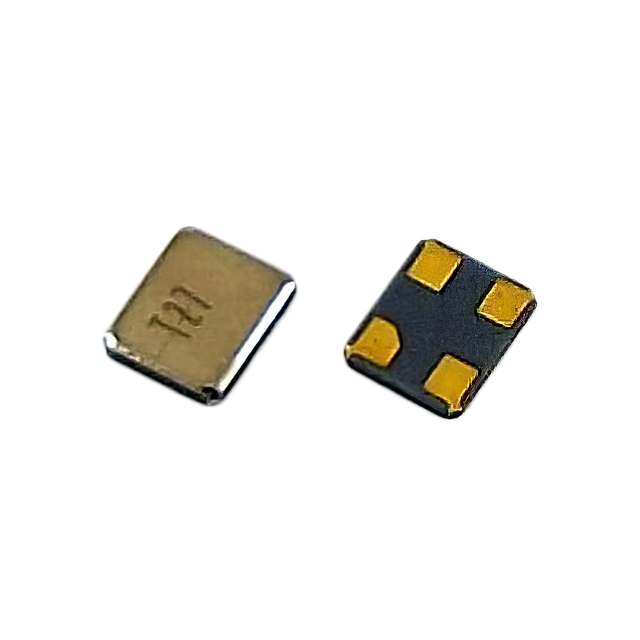

CS21-F1020CQ08-16.000M-TR
ActiveTransko Electronics, Inc.
16MHZ CRYSTAL, 2.0 X 1.6 CERAMIC
CS21-F1020CQ08-16.000M-TR
ActiveTransko Electronics, Inc.
16MHZ CRYSTAL, 2.0 X 1.6 CERAMIC
Description
General part information
CS21-F1020CQ08-16.000M-TR
16 MHz ±10ppm Crystal 8pF 150 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CS21-F1020CQ08-16.000M-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohm |
| Frequency | 16 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.018 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | MHz Crystal |
