MLP2012S1R5TT0S1
ActiveTDK Corporation
FIXED IND 1.5UH 700MA 351MOHM SM
MLP2012S1R5TT0S1
ActiveTDK Corporation
FIXED IND 1.5UH 700MA 351MOHM SM
Description
General part information
MLP2012S1R5TT0S1

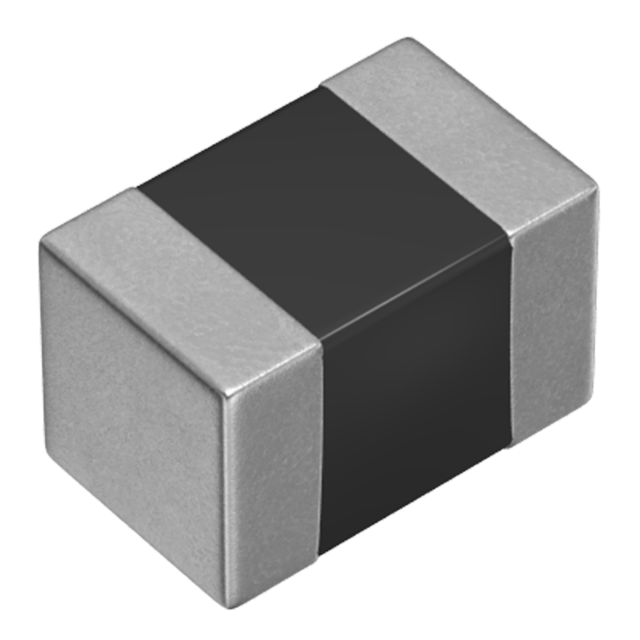

1.5 µH Shielded Multilayer Inductor 700 mA 351mOhm Max 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLP2012S1R5TT0S1 |
|---|---|
| Current Rating | 700 mA |
| DC Resistance (DCR) (Max) | 351 mOhm |
| Height - Seated (Max) | 0.022 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 2 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Multilayer |
