966926-4
ActiveTE Connectivity AMP Connectors

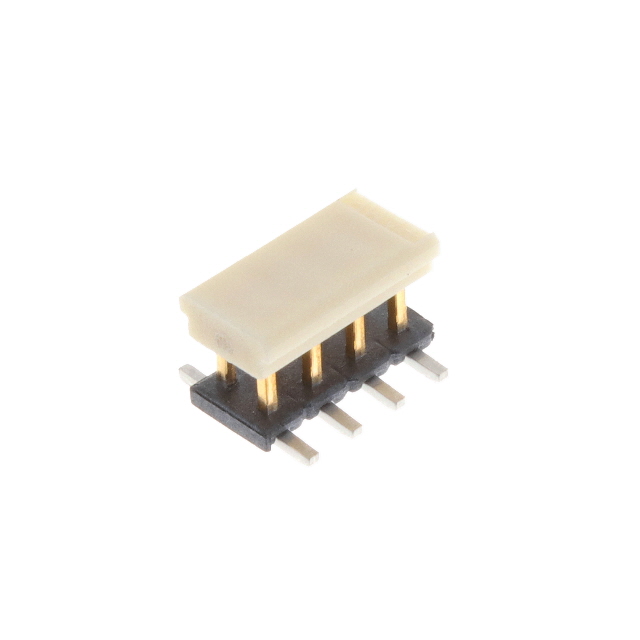

CONN HEADER SMD 8POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
966926-4
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 8POS 2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 966926-4 | 966926 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold, PdNi +Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.5 µm | 2.5 µm |
| Contact Finish Thickness - Post | 98.4 µin | 98.4 µin |
| Contact Length - Mating | 0.136 in | 0.136 in |
| Contact Length - Mating | 3.45 mm | 3.45 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Pick and Place | Pick and Place |
| Insulation Color | Black | Black |
| Insulation Height | 0.9 mm | 0.9 mm |
| Insulation Height | 0.035 in | 0.035 in |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 8 | 4 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Row Spacing - Mating | 0.079 in | 0.079 in |
| Row Spacing - Mating | 2 mm | 2 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.47 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.82 | |||
| 50 | $ 3.74 | |||
| 100 | $ 3.61 | |||
| Tape & Reel (TR) | 1000 | $ 3.61 | ||
966926 Series
CONN HEADER SMD 4POS 2MM
| Part | Number of Rows | Termination | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Color | Contact Finish - Mating | Insulation Material | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Voltage Rating | Mounting Type | Number of Positions | Contact Material | Shrouding | Number of Positions Loaded | Features | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-966926-2 | 2 | Solder | 0.136 in | 3.45 mm | 0.079 in | 2 mm | 0.9 mm | 0.035 in | Push-Pull | Tin | Male Pin | -40 °C | 105 ░C | UL94 V-0 | Black | Gold, PdNi +Gold | Liquid Crystal Polymer (LCP) | Board to Board, Cable | 2.5 µm | 98.4 µin | Square | 30 Áin | 0.76 Ám | Breakaway, Header | 250 VAC | Surface Mount | 4 | Brass | Unshrouded | All | Pick and Place | 0.079 in | 2 mm |
TE Connectivity AMP Connectors 966926-5 | 2 | Solder | 0.136 in | 3.45 mm | 0.079 in | 2 mm | 0.9 mm | 0.035 in | Push-Pull | Tin | Male Pin | -40 °C | 105 ░C | UL94 V-0 | Black | Gold, PdNi +Gold | Liquid Crystal Polymer (LCP) | Board to Board, Cable | 2.5 µm | 98.4 µin | Square | 30 Áin | 0.76 Ám | Breakaway, Header | 250 VAC | Surface Mount | 10 | Brass | Unshrouded | All | Pick and Place | 0.079 in | 2 mm |
TE Connectivity AMP Connectors 966926-4 | 2 | Solder | 0.136 in | 3.45 mm | 0.079 in | 2 mm | 0.9 mm | 0.035 in | Push-Pull | Tin | Male Pin | -40 °C | 105 ░C | UL94 V-0 | Black | Gold | Liquid Crystal Polymer (LCP) | Board to Board, Cable | 2.5 µm | 98.4 µin | Square | 30 Áin | 0.76 Ám | Breakaway, Header | 250 VAC | Surface Mount | 8 | Brass | Unshrouded | All | Pick and Place | 0.079 in | 2 mm |
TE Connectivity AMP Connectors 966926-7 | 2 | Solder | 0.136 in | 3.45 mm | 0.079 in | 2 mm | 0.9 mm | 0.035 in | Push-Pull | Tin | Male Pin | -40 °C | 105 ░C | UL94 V-0 | Black | Gold | Liquid Crystal Polymer (LCP) | Board to Board, Cable | 2.5 µm | 98.4 µin | Square | 30 Áin | 0.76 Ám | Breakaway, Header | 250 VAC | Surface Mount | 14 | Brass | Unshrouded | All | Pick and Place | 0.079 in | 2 mm |
TE Connectivity AMP Connectors 1-966926-0 | 2 | Solder | 0.136 in | 3.45 mm | 0.079 in | 2 mm | 0.9 mm | 0.035 in | Push-Pull | Tin | Male Pin | -40 °C | 105 ░C | UL94 V-0 | Black | Gold | Liquid Crystal Polymer (LCP) | Board to Board, Cable | 2.5 µm | 98.4 µin | Square | 30 Áin | 0.76 Ám | Breakaway, Header | 250 VAC | Surface Mount | 20 | Brass | Unshrouded | All | Pick and Place | 0.079 in | 2 mm |
Description
General part information
966926 Series
Connector Header Surface Mount 8 position 0.079" (2.00mm)
