201876-002

Active

Watterott Electronic GmbH

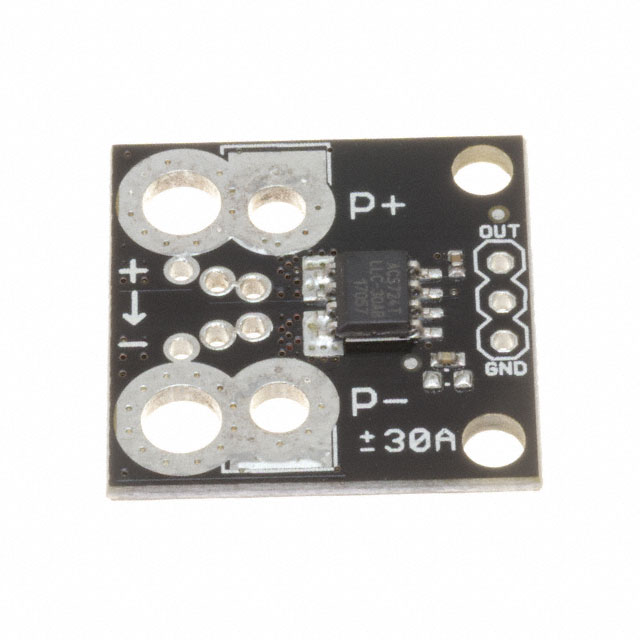

ACS725 STROMSENSOR BREAKOUT +-30

Search across all available documentation for this part.

Active

Watterott Electronic GmbH

ACS725 STROMSENSOR BREAKOUT +-30

Technical Specifications

Parameters and characteristics commom to parts in this series

ACS725 STROMSENSOR BREAKOUT +-30

Part	Sensor Type	Sensing Range	Interface	Utilized IC / Part	Sensitivity	Contents	Voltage - Supply	Sensing Range [Max]	Sensing Range [Min]
Watterott Electronic GmbH 201876-002	Current Sensor	30 A	Analog	ACS725	44 mV/A	Board(s)	3.3 V
Watterott Electronic GmbH 201876-001	Current Sensor		Analog	ACS725	66 mV/A	Board(s)	3.3 V	10 A	-10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.32

General part information

ACS725 - Current Sensor Sensor Evaluation Board
