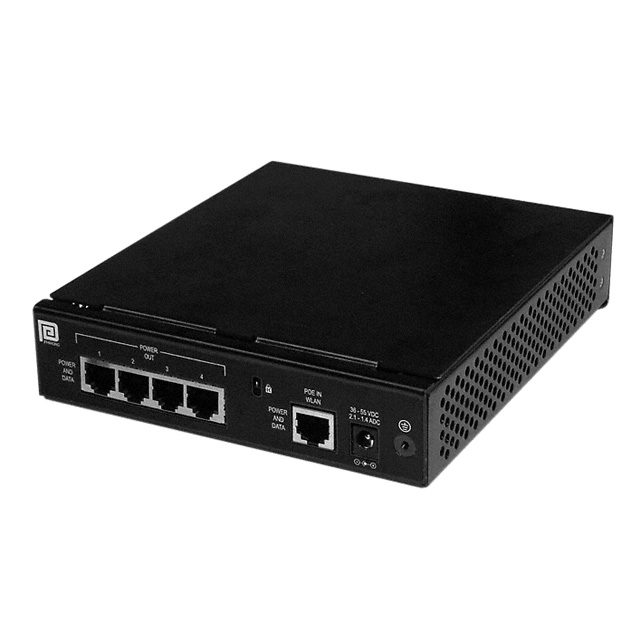

POE60S-4AF
ObsoletePhihong USA
POE EXTENDER 15.4W 48V DESKTOP
POE60S-4AF
ObsoletePhihong USA
POE EXTENDER 15.4W 48V DESKTOP
Description
General part information
POE60S-4AF
48V Power Over Ethernet (POE) 4 Port Extender 10/100 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE60S-4AF |
|---|---|
| Approval Agency | CE |
| Current - Output | 0.32 A |
| Data Rate (Option 1) | 10 Mbps |
| Data Rate (Option 2) | 100 Mbps |
| Efficiency | 84 % |
| Features | SCP, OVP, OCP |
| Input Connector | RJ45 (Data, Power), Receptacle (Power) |
| Input Connector Size | 2.5 mm |
| Maximum Data Rate | 100 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Number of Ports | 4 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 15.4 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 6.87 in |
| Size / Dimension Width | 6.06 in |
| Type | Extender |
| Typical Data Rate | 0 Gbps |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 36 V |
| Voltage - Output | 48 V |
| Weight | 2 lbs |
