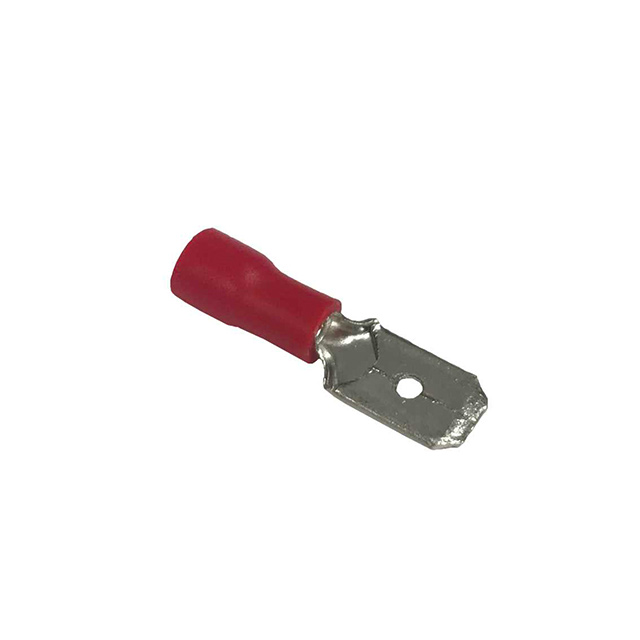

MDD1.25-250-100
ActiveRemington Industries
QUICK CONNECT TERM MALE 100PCS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDD1.25-250-100
ActiveRemington Industries
QUICK CONNECT TERM MALE 100PCS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MDD1.25-250-100 | MDD1.25 Series |
|---|---|---|
| Color | Red | Red |
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Gender | Male | Male |
| Insulation | Insulated | Insulated |
| Length - Overall [x] | 0.827 in | 0.827 in |
| Length - Overall [x] | 21 mm | 21 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | 11 mm | 11 mm |
| Tab Length | 0.433 in | 0.433 in |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
MDD1.25 Series
QUICK CONNECT TERM MALE 10PCS
| Part | Insulation | Contact Material | Tab Width | Tab Width | Terminal Type | Tab Length | Tab Length | Gender | Color | Contact Finish | Tab Thickness | Tab Thickness | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries MDD1.25-250-10 | Insulated | Brass | 6.35 mm | 0.25 in | Standard | 11 mm | 0.433 in | Male | Red | Tin | 0.032 in | 0.81 mm | Free Hanging (In-Line) | 22 AWG | 16 AWG | 0.827 in | 21 mm | Crimp |
Remington Industries MDD1.25-250-100 | Insulated | Brass | 6.35 mm | 0.25 in | Standard | 11 mm | 0.433 in | Male | Red | Tin | 0.032 in | 0.81 mm | Free Hanging (In-Line) | 22 AWG | 16 AWG | 0.827 in | 21 mm | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.36 | |
Description
General part information
MDD1.25 Series
0.250" (6.35mm) Quick Connect Male 16-22 AWG Crimp Connector Insulated
