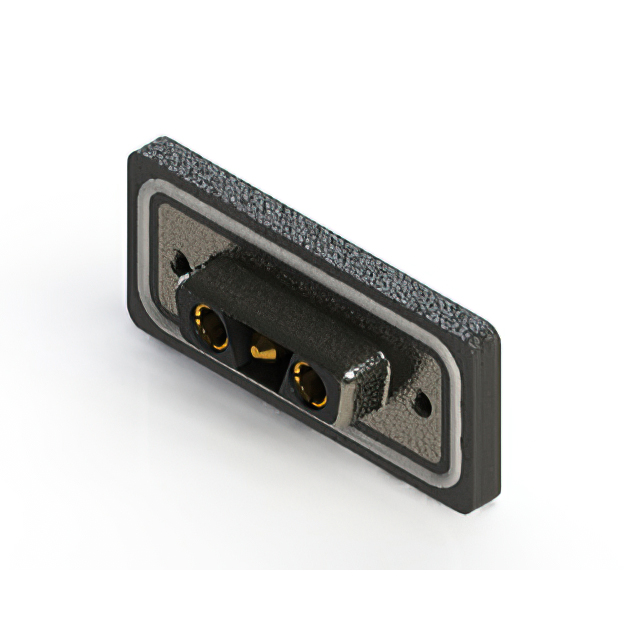

628W3WK3224-3NA

Active

EDAC Inc.

CONN D-SUB RCPT 3P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W3WK3224-3NA

Active

EDAC Inc.

CONN D-SUB RCPT 3P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W3WK3224-3NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

628W3W Series

...

Part	Contact Material	Shell Material, Finish	Number of Positions	Number of Rows	Flange Feature	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Voltage Rating	Contact Type	Dielectric Material	Connector Style	Material Flammability Rating	Termination	Contact Finish Thickness	Shell Size, Connector Layout
EDAC Inc. 628W3W3-122-4N2	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (4-40)	Black	2 (DA A)	3W3	0.127 µm	5 µin	40 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0
EDAC Inc. 628W3W3-224-4N2	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (4-40)	Black	2 (DA A)	3W3			40 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder	Flash
EDAC Inc. 628W3W3-124-2N2	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (4-40)	Black	2 (DA A)	3W3	0.127 µm	5 µin	20 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder
EDAC Inc. 628W3WK3224-4NA	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (M3)	Black					40 A	Gold	Female Sockets Male Pins Receptacle	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder	Flash	2 (DA A) - 3WK3
EDAC Inc. 628W3W3-124-4N2	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (4-40)	Black	2 (DA A)	3W3	0.127 µm	5 µin	40 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder
EDAC Inc. 628W3WK3222-4NA	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (M3)	Black					40 A	Gold	Female Sockets Male Pins Receptacle	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0		Flash	2 (DA A) - 3WK3
EDAC Inc. 628W3W3-222-3NA	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (M3)	Black	2 (DA A)	3W3			30 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0		Flash
EDAC Inc. 628W3WK3122-2NA	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (M3)	Black			0.127 µm	5 µin	20 A	Gold	Female Sockets Male Pins Receptacle	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0			2 (DA A) - 3WK3
EDAC Inc. 628W3W3-224-4ND	Copper Alloy	Nickel Plated Steel	3	1	Board Side (M3)	Black	2 (DA A)	3W3			40 A	Gold	Receptacle Female Sockets	-25 °C	85 °C	Board Lock Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder	Flash
EDAC Inc. 628W3WK3224-3NA	Copper Alloy	Nickel Plated Steel	3	1	Housing/Shell (M3)	Black					30 A	Gold	Female Sockets Male Pins Receptacle	-25 °C	85 °C	Shielded	IP67 - Dust Tight Waterproof	125 VDC	Power	Polybutylene Terephthalate (PBT) Glass Filled	Combo D-Sub	UL94 V-0	Solder	Flash	2 (DA A) - 3WK3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.14

Description

General part information

628W3W Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
