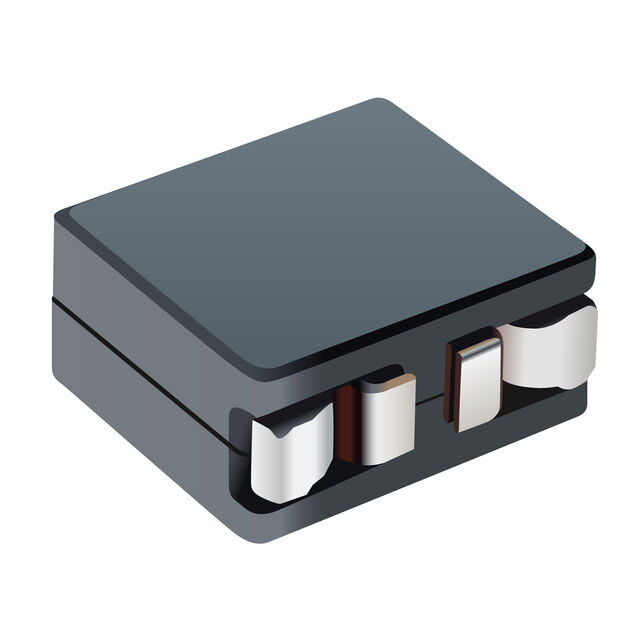

TLVR1105T-R20Y
ActiveBourns Inc.
IND TLVR 200NH 15% 77A SHLD SMD
TLVR1105T-R20Y
ActiveBourns Inc.
IND TLVR 200NH 15% 77A SHLD SMD
Description
General part information
TLVR1105T-R20Y
200 nH Shielded Molded Inductor 77 A 0.125mOhm Nonstandard, 4 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TLVR1105T-R20Y |
|---|---|
| Current - Saturation (Isat) | 58 A |
| Current Rating | 77 A |
| DC Resistance (DCR) | 0.125 mOhm |
| Height - Seated (Max) | 0.441 in |
| Inductance | 200 nH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Lead, 4 Leads |
| Package Name | Nonstandard, 4 Lead |
| Shielding | Shielded |
| Size / Dimension Length | 0.461 in |
| Size / Dimension Width | 0.224 in |
| Tolerance | 15 % |
| Type | Molded |
