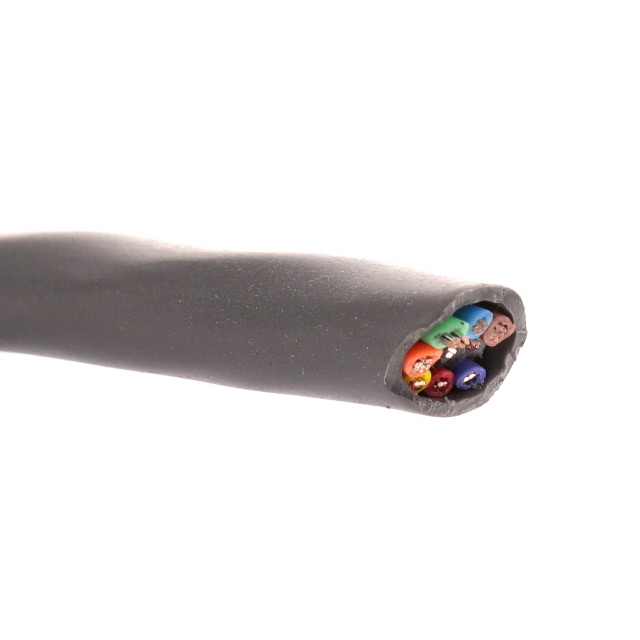

9455 060100

Active

Belden Inc.

CABLE 9COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9455 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	8.05 mm
Jacket (Insulation) Diameter [diameter]	0.317 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Number of Conductors	Ratings	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Cable Type	Jacket Color
Belden Inc. 9455 060100	9	UL Style 2464	30.5 m	100 ft	28	7	0.889 mm	0.035 in	Audio Control Instrumentation	-20 C	80 C	Poly-Vinyl Chloride (PVC)	20 AWG	8.05 mm	0.317 in	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.53

General part information

9 Conductor Multi-Conductor Cable Chrome 20 AWG 100.0' (30.5m)
