1689873
ActivePhoenix Contact

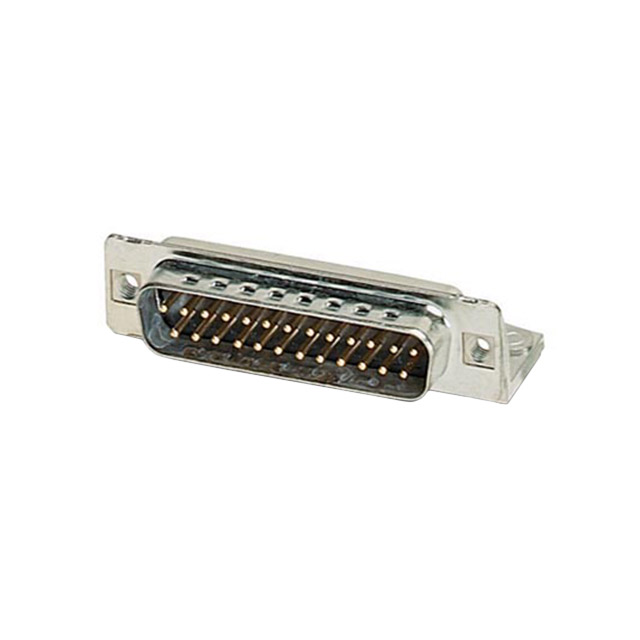

CONN D-SUB PLUG 25POS R/A SLDR
1689873
ActivePhoenix Contact
CONN D-SUB PLUG 25POS R/A SLDR
Description
General part information
1689873
25 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 1689873 |
|---|---|
| Backset Spacing | 0.37 in |
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 5 A |
| Dielectric Material | Glass Filled, Polyester |
| Features | Grounding Indents, Board Lock |
| Finish | Yellow Chromate Plated |
| Flange Feature | Shell (M3), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
| Voltage Rating | 125 V |
