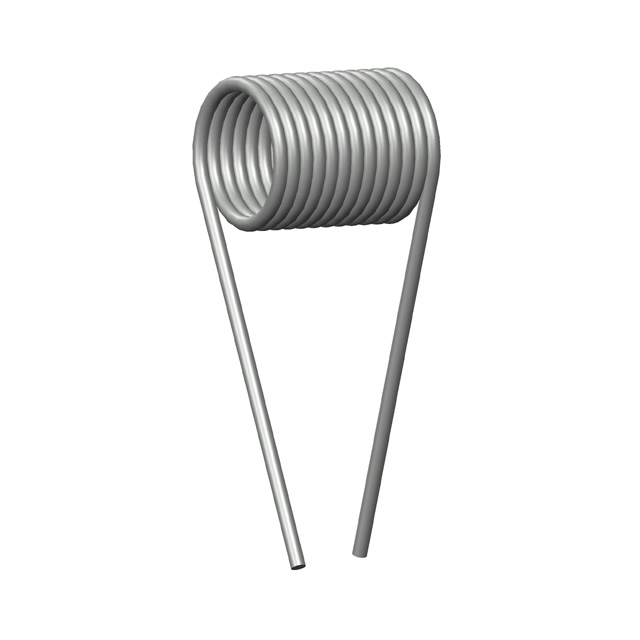

TO-5181RCS
ActiveCentury Spring Corp
TOR O=.750, W=.072
TO-5181RCS
ActiveCentury Spring Corp
TOR O=.750, W=.072
Description
General part information
TO-5181RCS
TOR O=.750, W=.072
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5181RCS |
|---|---|
| Deflection Angle | 285 ° |
| Diameter - Outside | 0.75 in |
| Finish | None |
| Leg Length | 2 in |
| Mandrel Diameter | 0.48 in |
| Material | Music Wire |
| Number of Coils | 12.625 |
| Wind Direction | Right |
| Wire Diameter | 0.072 in |
