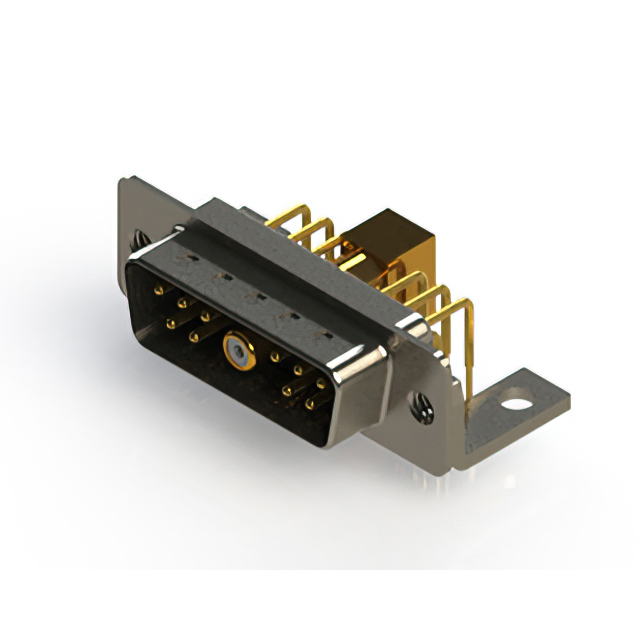

CONN D-SUB PLUG 11POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-11W1640-7T4
ActiveEDAC Inc.
CONN D-SUB PLUG 11POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-11W1640-7T4 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Coax |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 11 |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 11C1, 11W1 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-11W Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Type | Backset Spacing | Backset Spacing | Features | Dielectric Material | Color | Voltage Rating | Connector Style | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Contact Type | Contact Material | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | Nickel Plated Steel | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 40 A | 10 | 1 | 11 | M3 | ||||
EDAC Inc. | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | Nickel Plated Steel | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 40 A | 10 | 1 | 11 | M3 | ||||
EDAC Inc. | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | Nickel Plated Steel | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 40 A | 10 | 1 | 11 | M3 | Flash | |||||
EDAC Inc. | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 10 | 1 | 11 | Housing/Shell (4-40) | Flash | 10A 5A | |||||||
EDAC Inc. | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Grounding Indents Shielded | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Coax Signal | Copper Alloy | 10 | Housing/Shell (Unthreaded) | 11 | 1 | ||||||
EDAC Inc. | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 20 A | 10 | 1 | 11 | Housing/Shell (4-40) | Flash | |||||||
EDAC Inc. | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Coax Signal | Copper Alloy | 10 | Housing/Shell (4-40) | 11 | 1 | |||||||
EDAC Inc. | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | Nickel Plated Steel | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 20 A | 10 | 1 | 11 | Housing/Shell (M3) | Flash | |||||
EDAC Inc. | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | Nickel Plated Steel | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Signal and Power | Copper Alloy | 5 A 30 A | 10 | 1 | 11 | Housing/Shell (4-40) | Flash | |||||
EDAC Inc. | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Plug | 9.4 mm | 0.37 in | Grounding Indents Mounting Brackets | Polyester Thermoplastic | Black | 125 VDC | Combo D-Sub | -55 °C | 125 °C | 2 | Through Hole Right Angle | Gold | 11C1 11W1 | 2 | Solder | Coax Signal | Copper Alloy | 10 | Housing/Shell (4-40) | 11 | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2000 | $ 10.04 | |
Description
General part information
629-11W Series
11 (10 + 1 Coax) Position D-Sub, Combo Plug, Male Pins Connector
