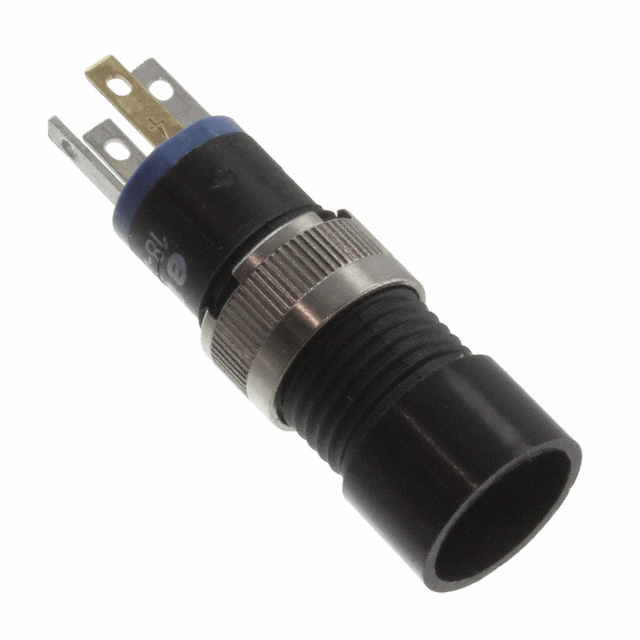

18-237.035
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18-237.035
ActiveEAO
SWITCH PB SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18-237.035 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.90 | |
| 10 | $ 20.79 | |||
| 100 | $ 18.11 | |||
18-237 Series
SWITCH PB SPST-NO 0.1A 42V
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mechanical Life | Actuator Marking | Switch Function | Actuator Type | Voltage Rating - AC | Circuit | Termination Style | Current Rating (Amps) | Voltage Rating - DC | Type | Electrical Life | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 18-237.035 | Panel Mount, Front | 65 °C | -25 °C | IP40 | 1000000 Cycles | No Marking | Off-On | Round, Button (Not Included) | 42 V | SPST-NO | Solder Lug | 100 mA | 42 V | Standard | 50000 Cycles | 8 mm |
Description
General part information
18-237 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
