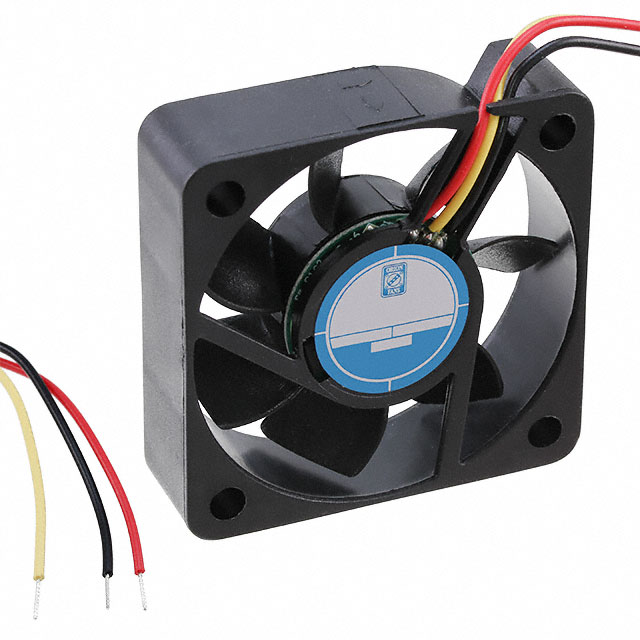

OD5015-12HB02A
ActiveOrion Fans
FAN AXIAL 50X15MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD5015-12HB02A
ActiveOrion Fans
FAN AXIAL 50X15MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD5015-12HB02A |
|---|---|
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [x] | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.09 | |
| 10 | $ 14.41 | |||
| 40 | $ 13.55 | |||
| 80 | $ 13.03 | |||
| 120 | $ 12.00 | |||
| 280 | $ 11.23 | |||
| 520 | $ 11.06 | |||
Description
General part information
OD5015-12HB02A
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 3 Wire Leads
Documents
Technical documentation and resources
No documents available
