IRF46ER272K
ActiveVishay Dale
FIXED IND 2.7MH 110MA 18 OHM TH
IRF46ER272K
ActiveVishay Dale
FIXED IND 2.7MH 110MA 18 OHM TH
Description
General part information
IRF46ER272K

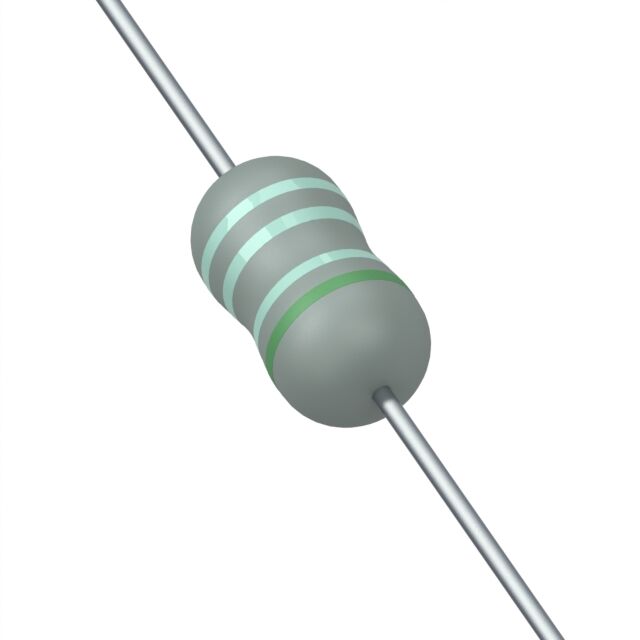

2.7 mH Unshielded Inductor 110 mA 18Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | IRF46ER272K |
|---|---|
| Current Rating | 110 mA |
| DC Resistance (DCR) (Max) | 18 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Inductance | 2.7 mH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Axial |
| Q | 80 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.394 in |
| Tolerance | 10 % |
