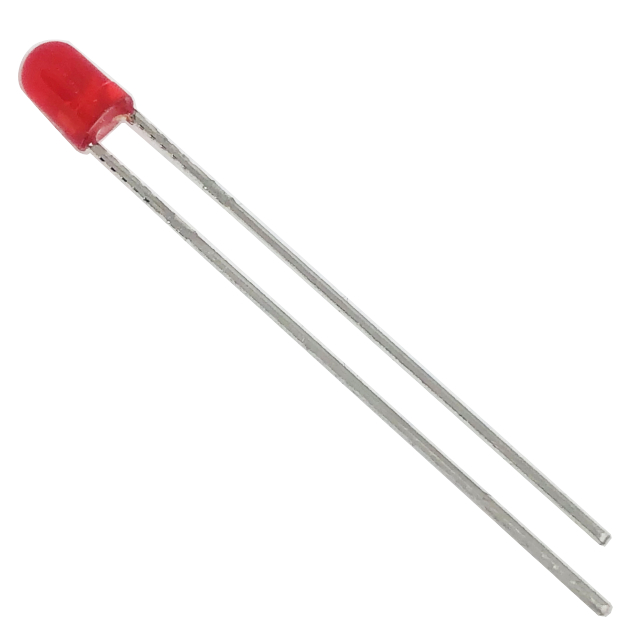

L354SRD
ActiveAmerican Opto Plus LED
LED RED DIFFUSED T-1 T/H
L354SRD
ActiveAmerican Opto Plus LED
LED RED DIFFUSED T-1 T/H
Description
General part information
L354SRD
Red 643nm LED Indication - Discrete 1.85V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | L354SRD |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 4.75 mm |
| Lens Color | Red |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 50 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 |
| Size / Dimension Diameter | 3 mm |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Dominant | 643 nm |
| Wavelength - Peak | 660 nm |
