953363-1

Active

TE Connectivity AMP Connectors

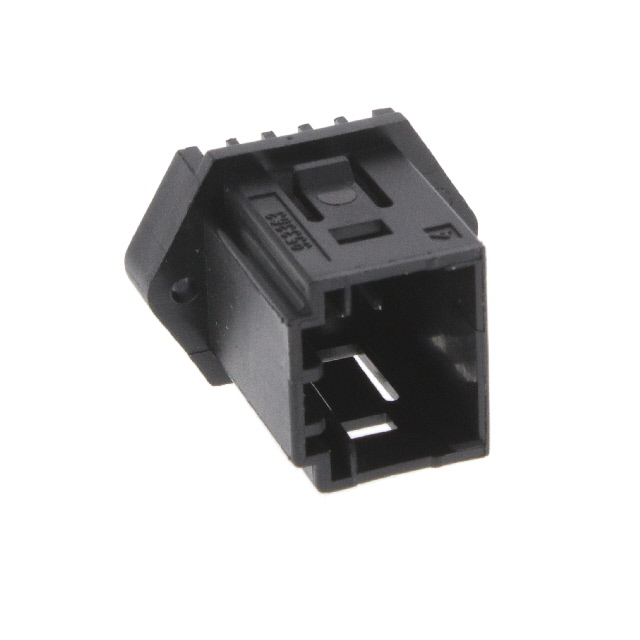

CONN HEADER VERT 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	953363-1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide, Mounting Flange
Insulation Color	Black
Insulation Height	20.09 mm
Insulation Height	0.791 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER VERT 6POS 2.54MM

Part	Features	Fastening Type	Contact Shape	Style	Contact Finish - Post	Contact Type	Number of Positions	Applications	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Rows	Termination	Contact Length - Mating	Contact Length - Mating	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Shrouding	Insulation Color
TE Connectivity AMP Connectors 953363-1	Board Guide, Mounting Flange	Friction Lock	Square	Board to Cable/Wire	Tin	Male Pin	6	Automotive	20.09 mm	0.791 in	85 °C	-40 °C	Through Hole	0.114 in	2.9 mm	2	Solder	5.9 mm	0.232 in	Header	Polybutylene Terephthalate (PBT), Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in	All	Shrouded - 4 Wall	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.100" (2.54mm)
