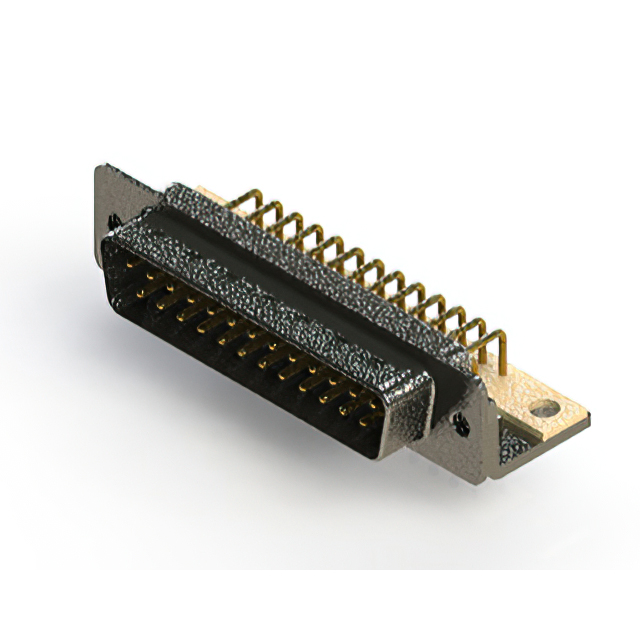

629-M25-640-WN4
ActiveEDAC Inc.
629M SERIES RIGHT ANGLE D-SUB PL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-M25-640-WN4 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
629-M25 Series
...
| Part | Number of Rows | Flange Feature | Backset Spacing | Backset Spacing | Mounting Type | Contact Type | Contact Material | Connector Style | Features | Color | Connector Type | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 4-40 Board Side | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | Nickel Plated Steel | UL94 V-0 | 15 µin | 0.38 µm | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | |
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | Black | Male Pins Plug | Nickel Plated Steel | UL94 V-0 | 15 µin | 0.38 µm | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | |
EDAC Inc. | 2 | 4-40 Board Side | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | UL94 V-0 | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | Flash | |||
EDAC Inc. | 2 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | Black | Male Pins Plug | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | ||
EDAC Inc. | 2 | 4-40 | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | UL94 V-0 | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | Flash | |||
EDAC Inc. | 2 | 4-40 | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | Nickel Plated Steel | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | |
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | Black | Male Pins Plug | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | ||
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | Black | Male Pins Plug | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | ||
EDAC Inc. | 2 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | Nickel Plated Steel | UL94 V-0 | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | Flash | ||
EDAC Inc. | 2 | 4-40 Board Side | 9.4 mm | 0.37 in | Through Hole Right Angle | Signal | Copper Alloy | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | Black | Male Pins Plug | Nickel Plated Steel | UL94 V-0 | -55 °C | 125 °C | Solder | Gold | B DB | 3 | Polyamide (PA6T) Nylon 6T | 5 A | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 12.21 | |
Description
General part information
629-M25 Series
25 Position D-Sub, Combo Plug, Male Pins Connector
