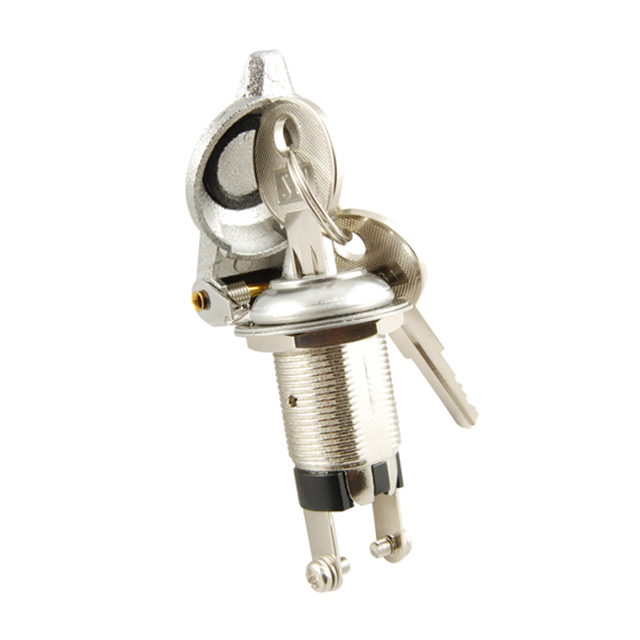

54-741
ActiveNTE Electronics, Inc
SWITCH KEYLOCK 2POS SPST 3A 125V
54-741
ActiveNTE Electronics, Inc
SWITCH KEYLOCK 2POS SPST 3A 125V
Description
General part information
54-741
Keylock Switch 2 Position SPST 3A (AC) 125 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-741 |
|---|---|
| Actuator Type | Flat Key |
| Circuit | SPST |
| Current Rating | 3 A |
| Depth Behind Flange | 43.2 mm |
| Electrical Life (Cycles) | 6000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 19.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
