TA4FLBX

Active

Switchcraft Inc.

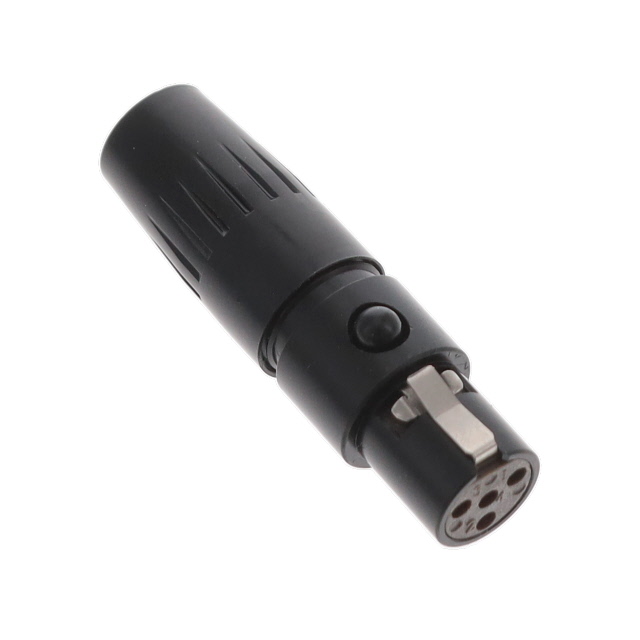

CONN PLUG FMALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics for this part

CONN PLUG FMALE MINI XLR 4P SLDR

Part	Termination	Connector Type	Backshell Material, Plating	Applications	Shell Size - Insert	Contact Material	Primary Material	Fastening Type	Features	Shell Finish	Color	Number of Positions	Insert Material	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell Material	Orientation	Contact Finish - Mating	Voltage Rating	Cable Opening [custom]
Switchcraft Inc. TA4FLBX	Solder	Female Sockets, Plug	Thermoplastic	Audio	Mini XLR	Copper Alloy	Metal	Latch Lock	Backshell, Cable Clamp	Chrome	Black	4	Thermoplastic	Shielded	5 A	85 °C	-55 °C	Free Hanging (In-Line)	Copper Alloy	Keyed	Silver	125 VAC	0.115 in, 0.19 in, 2.92 mm, 4.83 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

No documents available
