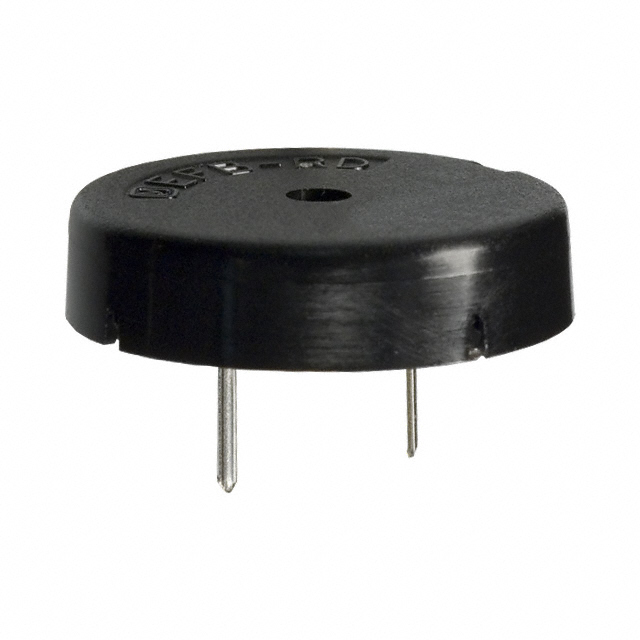

EFB-RD22C413
ObsoletePanasonic Electronic Components
BUZZER PIEZO 15V 22MM TH
EFB-RD22C413
ObsoletePanasonic Electronic Components
BUZZER PIEZO 15V 22MM TH
Description
General part information
EFB-RD22C413
Buzzers Transducer, Externally Driven Piezo 15 V 4kHz 80dB @ 15V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB-RD22C413 |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) | 0.256 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.866 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 15 V |
| Voltage Range (Max) | 30 VDC |
