5219183F
ActiveDIALIGHT

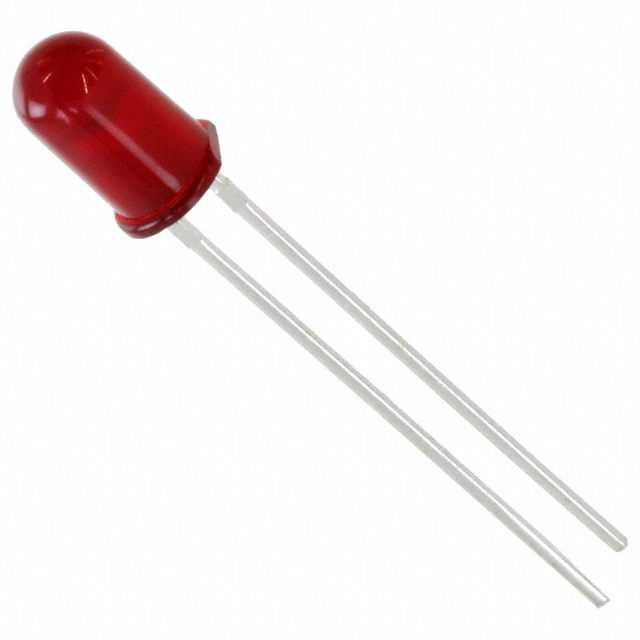

LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5219183F
ActiveDIALIGHT
LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5219183F | 5219183 Series |
|---|---|---|
| Color | Red | Red |
| Configuration | Standard | Standard |
| Current - Test | 10 mA | 10 mA |
| Height (Max) [Max] [z] | 10.95 mm | 10.95 mm |
| Lens Color | Red | Red |
| Lens Size [diameter] | 4.83 mm | 4.83 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 8 mcd | 8 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Supplier Device Package | T-1 3/4 (5mm) | T-1 3/4 (5mm) |
| Viewing Angle | 60 ° | 60 ° |
| Voltage - Forward (Vf) (Typ) | 7.5 V | 7.5 V |
| Wavelength - Peak | 635 nm | 635 nm |
5219183 Series
LED RED DIFFUSED T-1 3/4 T/H
| Part | Current - Test | Package / Case | Wavelength - Peak | Height (Max) [Max] [z] | Millicandela Rating | Mounting Type | Color | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Lens Size [diameter] | Viewing Angle | Lens Style | Lens Color | Lens Transparency | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT 5219183F | 10 mA | Radial | 635 nm | 10.95 mm | 8 mcd | Through Hole | Red | 7.5 V | T-1 3/4 (5mm) | 4.83 mm | 60 ° | Round with Domed Top | Red | Diffused | Standard |
DIALIGHT 5219183 | Radial | 10.95 mm | Through Hole | T-1 3/4 (5mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.27 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
| 2000 | $ 0.51 | |||
| 5000 | $ 0.48 | |||
| 10000 | $ 0.46 | |||
Description
General part information
5219183 Series
Red LED Indication - Discrete 7.5V Radial
