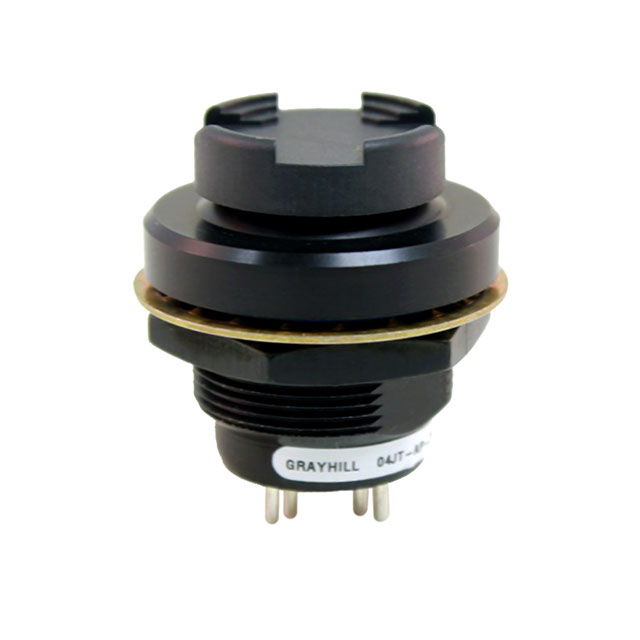

04JT-AP-T02-4
ActiveGrayhill Inc.
SWITCH NAVIGATION CASTLE 10MA 5V
04JT-AP-T02-4
ActiveGrayhill Inc.
SWITCH NAVIGATION CASTLE 10MA 5V
Description
General part information
04JT-AP-T02-4
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | 04JT-AP-T02-4 |
|---|---|
| Actuator Type | Castle |
| Axis Count | 2 Axis |
| Contact Finish | Gold |
| Contact Material | Nickel |
| Current Rating | 10 mA |
| Electrical Life (Cycles) | 250000 |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 250000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 454 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional |
| Termination Style | PC Pin |
| Type | Navigation Switch, 2 - Axis |
| Voltage Rating - DC | 5 V |
