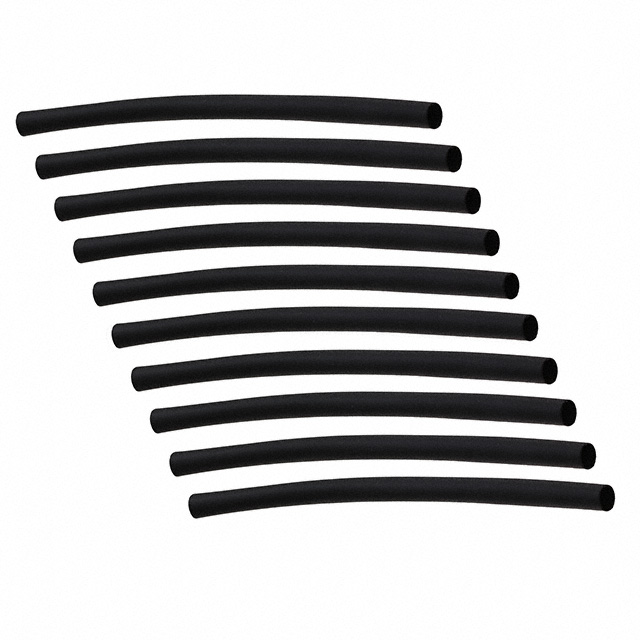

EPS200-1/4-6"-BLACK-10-10 PC PKS

Active

3M (TC)

HEATSHRINK TUBING 1/4-6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog +1

EPS200-1/4-6"-BLACK-10-10 PC PKS

Active

3M (TC)

HEATSHRINK TUBING 1/4-6"

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPS200-1/4-6"-BLACK-10-10 PC PKS

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

EPS-200 Series

Part	Length	Length	Length	Shrink Temperature	Length [x]	Length [x]	Shelf Life Start	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M (TC) EPS-200 3/4" BL48"BX	0.062 ' 0.083 ft 0.125 ' 0.167 ' 0.25 ft	19.05 mm 25.4 mm 38.1 mm 50.8 mm 76.2 mm	0.75 " 1 in 1.5 " 2 " 3 "	121 °C	1.22 m	4 ft	Date of Manufacture	2 to 1	0.375 in	9.53 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.94 mm	0.037 in	Black
3M (TC) EPS200 2" BL48"BX				121 °C	1.22 m 609.6 mm	2 ' 4 ft	Date of Manufacture	2 to 1	1 in	25.4 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	1.52 mm	0.06 in	Black	50.8 mm	2 in
3M (TC) EPS-200 1/2" BL 48"BX	0.062 ' 0.125 ' 0.167 ' 0.25 ft	19.05 mm 38.1 mm 50.8 mm 76.2 mm 152.4 mm	0.75 " 1.5 " 2 " 3 " 6 "	121 °C			Date of Manufacture	2 to 1	0.25 in	6.35 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.81 mm	0.032 "	Black	12.7 mm	0.5 in	0.5 '
3M (TC) EPS200-3/16-6"-BLACK-10-10 PC PKS		152.4 mm	6 "	121 °C			Date of Manufacture	2 to 1			-55 °C	110 °C	Adhesive Lined Flame Retardant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.69 mm	0.027 "	Black	4.75 mm	0.187 in	0.5 '	2.36 mm	0.093 in
3M (TC) EPS-200 1 1/2" BL 48"BX	0.062 ' 0.083 ft 0.25 ft	19.05 mm 25.4 mm 76.2 mm 152.4 mm	0.75 " 1 in 3 " 6 "	121 °C	101.6 mm	0.333 ft	Date of Manufacture	2 to 1	0.75 "	19.05 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	1.24 mm	0.049 "	Black	38.1 mm	1.5 in	0.5 '			4 "
3M (TC) EPS200-1/4-6"-BLACK-10-10 PC PKS		152.4 mm	6 "	121 °C			Date of Manufacture	2 to 1	0.125 in		-55 °C	110 °C	Adhesive Lined Flame Retardant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.76 mm		Black	6.35 mm	0.25 in	0.5 '	3.18 mm			0.03 "
3M (TC) EPS200 1" BL48"BX				121 °C			Date of Manufacture	2 to 1	0.5 in	12.7 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months			Black	25.4 mm	1 in						0.046 in	1.17 mm
3M (TC) EPS-200 1" BL 48" BX	0.062 ' 0.125 ' 0.167 ' 0.25 ft	19.05 mm 38.1 mm 50.8 mm 76.2 mm	0.75 " 1.5 " 2 " 3 "	121 °C	1.22 m	4 ft	Date of Manufacture	2 to 1	0.5 in	12.7 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant Fluid Resistant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months			Black	25.4 mm	1 in						0.046 in	1.17 mm
3M (TC) EPS-200-3/8-48-BLACK-BULK				121 °C	1.22 m	4 ft	Date of Manufacture	2 to 1	0.187 in	4.75 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.79 mm	0.031 "	Black	9.53 mm	0.375 in
3M (TC) EPS200-1/8-6"-BLACK-10-10 PC PKS		152.4 mm	6 "	121 °C			Date of Manufacture	2 to 1	0.063 in	1.6 mm	-55 °C	110 °C	Adhesive Lined Flame Retardant	Tubing Flexible	Polyolefin (PO)	27 °C 80 °F	10 °C	120 Months	0.69 mm	0.027 "	Black	3.18 mm	0.125 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 20.89
		20	$ 19.21
		30	$ 18.30
		50	$ 17.23

Description

General part information

EPS-200 Series

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 Black 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

EPS-200 Tubing

Datasheet
