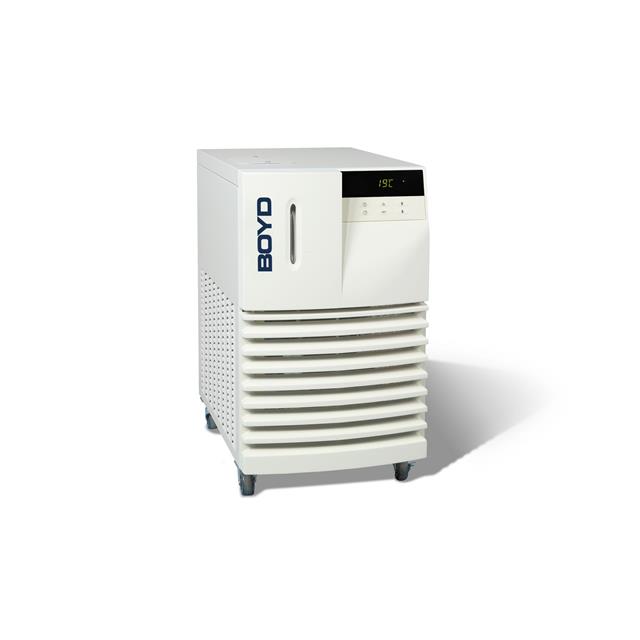

Specification	RC022J03BB3M126

Connection Size	0.5 in
Connection Type	FNPT
Current	10 A
Dimensions - Overall Height	26.5 in
Dimensions - Overall Length	24.5 in
Dimensions - Overall Width	14.8 in
Features	0.1° Setpoint, 5 Micron Water Filter, Adjustable Flow Valve, Remote Start, Air Filter
Flow Rate	1.3 GPM
Fluid Capacity	7571 ML
Operating Temperature (Max)	35 °C
Operating Temperature (Min)	10 °C
Power - Cooling	2400 W
Product Type	Recirculating Chiller
Ratings	UL
Voltage (Max)	230 VAC
Voltage (Min)	208 VAC
Weight	166 lbs
