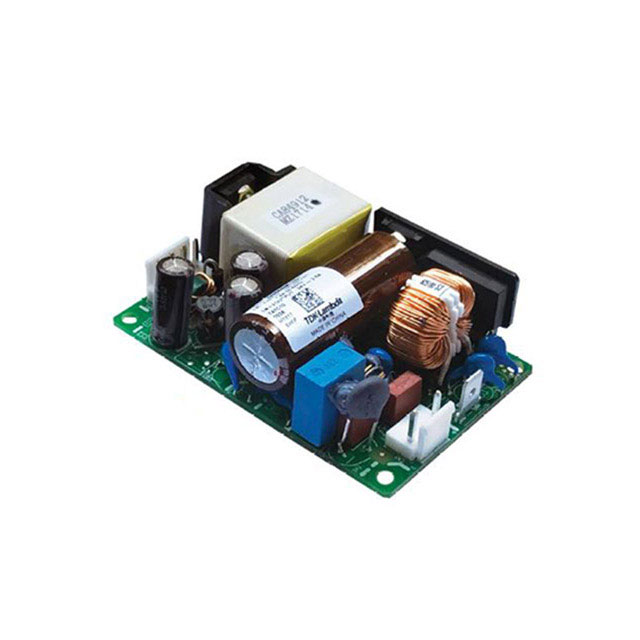

CUS60M-12
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 60 W, 85V AC TO 265V AC, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
CUS60M-12
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 60 W, 85V AC TO 265V AC, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS60M-12 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output 1 | 5 A |
| Efficiency | 88 % |
| Features | PFC, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 1.05 " |
| Size / Dimension [z] | 26.7 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUS60M-12
Open Frame AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
