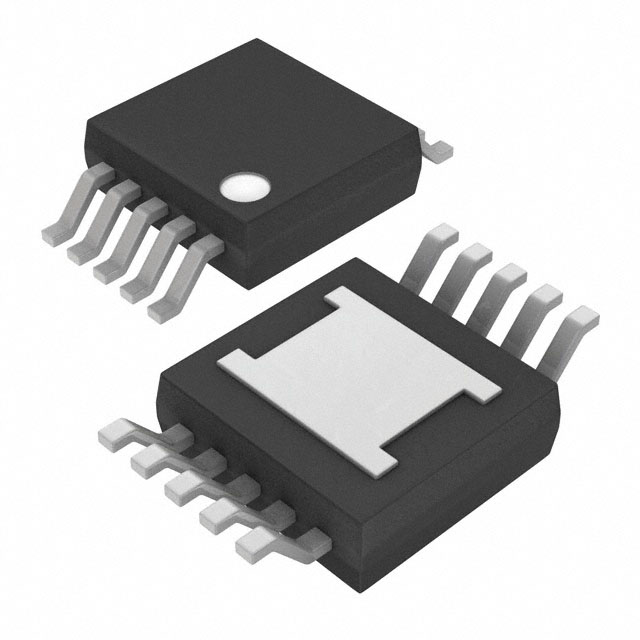

MAX11102AUB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 12BIT SAR 10UMAX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11102AUB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 12BIT SAR 10UMAX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11102AUB+T | MAX11102 Series |
|---|---|---|
| Architecture | SAR | SAR |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC |
| Data Interface | SPI | SPI |
| Input Type | Single Ended | Single Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 12 bits | 12 bits |
| Number of Inputs | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3 Lead, 0.118 in | 0.118 - 3 Lead |
| Package / Case | Exposed Pad, 10-TFSOP, 10-MSOP | Exposed Pad, 10-TFSOP, 10-MSOP, 10-WFDFN Exposed Pad |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | External | External |
| Sampling Rate (Per Second) | 2M | 2M |
| Supplier Device Package | 10-uMAX-EP | 10-uMAX-EP, 10-TDFN (3x3) |
| Voltage - Supply, Analog [Max] | 3.6 V | 3.6 V |
| Voltage - Supply, Analog [Min] | 2.2 V | 2.2 V |
| Voltage - Supply, Digital [Max] | 3.6 V | 3.6 V |
| Voltage - Supply, Digital [Min] | 2.2 V | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.46 | |
| 10 | $ 6.55 | |||
| 25 | $ 5.80 | |||
| 100 | $ 4.96 | |||
| 250 | $ 4.55 | |||
| 500 | $ 4.31 | |||
| 1000 | $ 4.10 | |||
| Digi-Reel® | 1 | $ 9.46 | ||
| 10 | $ 6.55 | |||
| 25 | $ 5.80 | |||
| 100 | $ 4.96 | |||
| 250 | $ 4.55 | |||
| 500 | $ 4.31 | |||
| 1000 | $ 4.10 | |||
| Tape & Reel (TR) | 2500 | $ 4.00 | ||
MAX11102 Series
IC ADC 12BIT SAR 10UMAX
| Part | Architecture | Number of Inputs | Sampling Rate (Per Second) | Ratio - S/H:ADC | Data Interface | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Configuration | Reference Type | Mounting Type | Input Type | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Number of A/D Converters | Number of Bits | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11102AUB/V+T | SAR | 2 | 2M | 1:1 | SPI | 3.6 V | 2.2 V | 125 °C | -40 °C | 0.118 in, 3 Lead | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | External | Surface Mount | Single Ended | 2.2 V | 3.6 V | 1 | 12 bits | 10-uMAX-EP |
Analog Devices Inc./Maxim Integrated MAX11102AUB/V+ | SAR | 2 | 2M | 1:1 | SPI | 3.6 V | 2.2 V | 125 °C | -40 °C | 0.118 in, 3 Lead | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | External | Surface Mount | Single Ended | 2.2 V | 3.6 V | 1 | 12 bits | 10-uMAX-EP |
Analog Devices Inc./Maxim Integrated MAX11102ATB+T | SAR | 2 | 2M | 1:1 | SPI | 3.6 V | 2.2 V | 125 °C | -40 °C | 10-WFDFN Exposed Pad | MUX-S/H-ADC | External | Surface Mount | Single Ended | 2.2 V | 3.6 V | 1 | 12 bits | 10-TDFN (3x3) | |
Analog Devices Inc./Maxim Integrated MAX11102AUB+T | SAR | 2 | 2M | 1:1 | SPI | 3.6 V | 2.2 V | 125 °C | -40 °C | 0.118 in, 3 Lead | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | External | Surface Mount | Single Ended | 2.2 V | 3.6 V | 1 | 12 bits | 10-uMAX-EP |
Analog Devices Inc./Maxim Integrated MAX11102AUB+ | SAR | 2 | 2M | 1:1 | SPI | 3.6 V | 2.2 V | 125 °C | -40 °C | 0.118 in, 3 Lead | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | External | Surface Mount | Single Ended | 2.2 V | 3.6 V | 1 | 12 bits | 10-uMAX-EP |
Description
General part information
MAX11102 Series
12 Bit Analog to Digital Converter 2 Input 1 SAR 10-uMAX-EP
