752091512GPTR13
ActiveCTS Resistor Products

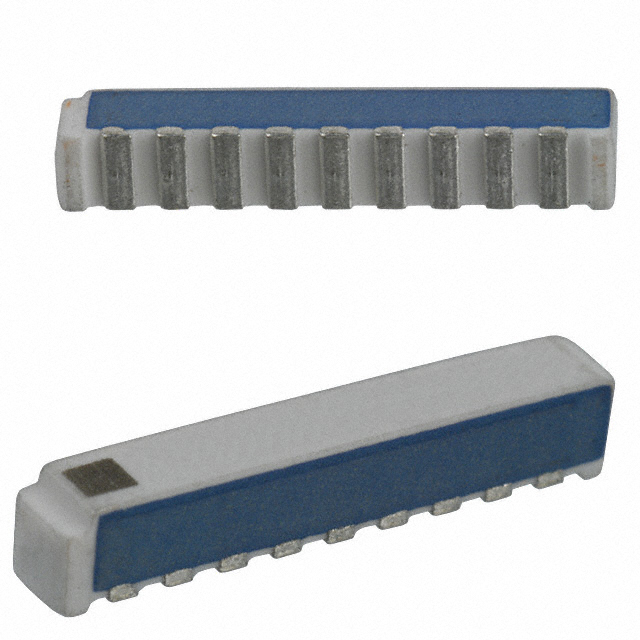

RES ARRAY 8 RES 5.1K OHM 9SRT
752091512GPTR13
ActiveCTS Resistor Products
RES ARRAY 8 RES 5.1K OHM 9SRT
Description
General part information
752091512GPTR13
5.1k Ohm ±2% 80mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 9-SRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 752091512GPTR13 |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 9 |
| Number of Resistors | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 9-SRT |
| Power Per Element | 80 mW |
| Resistance | 5.1 kOhm |
| Size / Dimension Length | 0.515 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
