Description
General part information

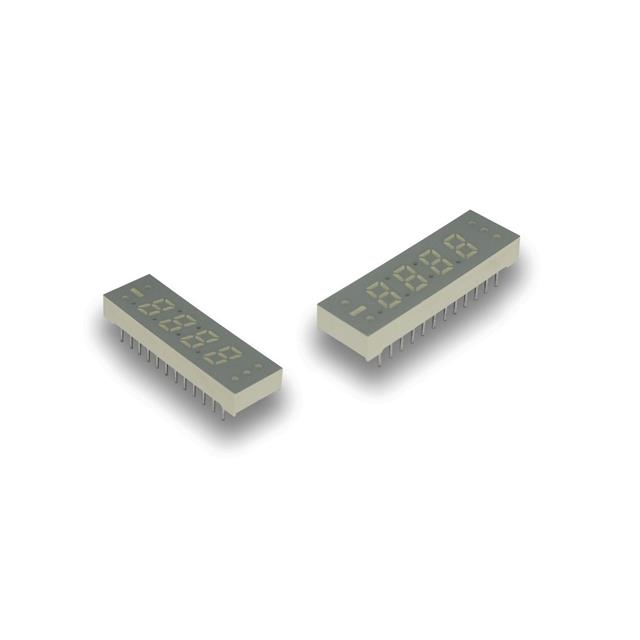

XDMR06A4-A
Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Anode 1.8V 10mA 0.433" H x 1.417" W x 0.197" D (11.00mm x 36.00mm x 5.00mm) 24-DIP (0.315", 8.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XDMR06A4-A |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 26.79 mcd |
| Number of Characters | 4 characters |
| Package Length | 0.315 in |
| Package Name | 24-DIP |
| Package Width | 8 mm |
| Power Dissipation (Max) | 150 mW |
| Size / Dimension Depth | 0.197 in |
| Size / Dimension Height | 0.433 in |
| Size / Dimension Width | 1.417 in |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 660 nm |
