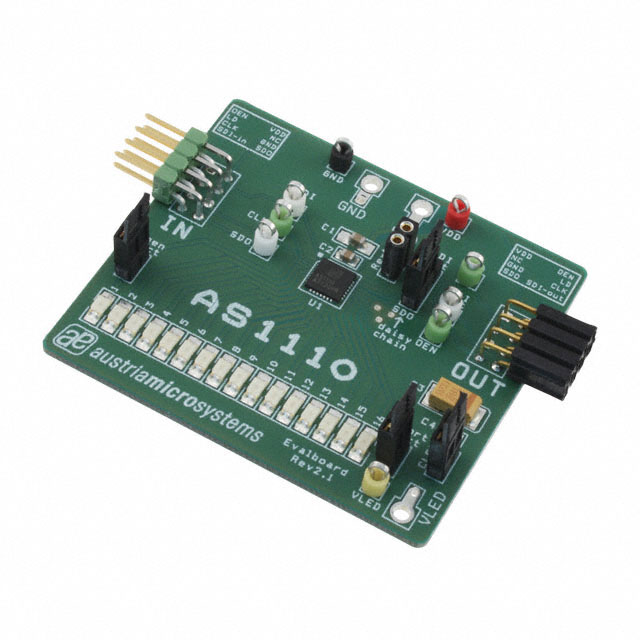

AS1110-QF_EK_ST

Active

ams-OSRAM USA INC.

BOARD EVAL AS1110

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

BOARD EVAL AS1110

Technical Specifications

Parameters and characteristics commom to parts in this series

IC LED DRVR LINEAR 100MA 24SSOP

Part	Number of Outputs	Supplier Device Package	Frequency	Voltage - Supply (Max)	Topology	Package / Case	Package / Case [custom]	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Mounting Type	Type	Applications	Voltage - Supply (Min) [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Utilized IC / Part
ams-OSRAM USA INC. AS1110A-BSST	16	24-SSOP	50 MHz	5.5 V	Shift Register	24-SSOP	0.154 ", 3.9 mm	100 mA	85 °C	-40 °C	15 VDC	Surface Mount	Linear	Signage	3 V
ams-OSRAM USA INC. AS1110-QF_EK_ST								100 mA			15 VDC					5.5 V	3 V	Board(s)	AS1110
ams-OSRAM USA INC. AS1110-BQFT	16	28-QFN (5x5)	50 MHz	5.5 V	Shift Register	28-WFQFN Exposed Pad		100 mA	85 °C	-40 °C	15 VDC	Surface Mount	Linear	Signage	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AS1110 - 16 Non-Isolated Outputs pval(5) LED Driver Evaluation Board

Technical documentation and resources

No documents available
