168.6785.4307
UnknownLITTELFUSE

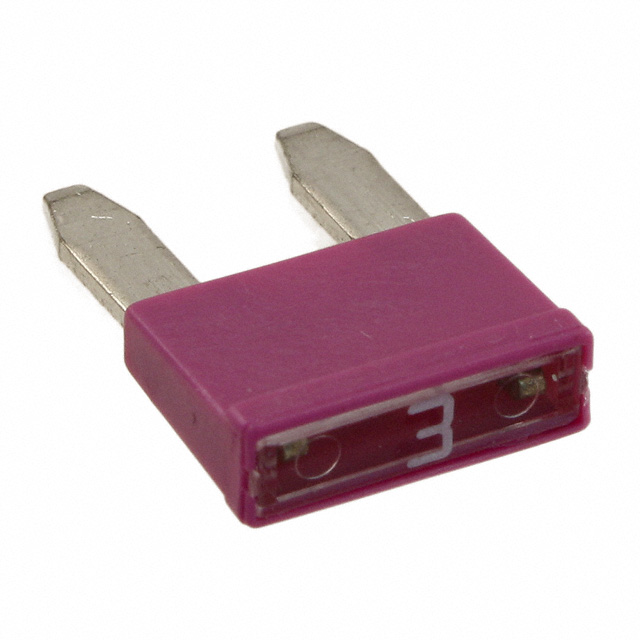

FUSE AUTOMOTIVE 3A 32VDC BLADE
168.6785.4307
UnknownLITTELFUSE
FUSE AUTOMOTIVE 3A 32VDC BLADE
Description
General part information
168.6785.4307
3 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
Technical Specifications
Parameters and characteristics for this part
| Specification | 168.6785.4307 |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity | 1 kA |
| Color | Violet |
| Current Rating | 3 A |
| DC Cold Resistance | 0.027 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 7.45 |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.339 in |
| Size / Dimension Length | 0.469 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 32 V |
